The 100Gbps QSFP28 PSM4 Optical Transceiver is a high-performance module designed for short-range communication over single-mode fiber (SMF) up to 2 kilometers. This transceiver features four independent transmit and receive channels, each capable of supporting data rates up to 26Gbps, resulting in an aggregate bandwidth of 104Gbps. Utilizing a 1310nm DFB laser array, it connects via an MPO connector, offering increased port density and cost efficiency for modern data center interconnects. It complies with QSFP28 MSA standards and is optimized for applications like 100G Ethernet and high-speed proprietary interconnects.
Operating on a single +3.3V power supply with power consumption below 3.5W, the module is energy-efficient and reliable within a temperature range of 0°C to 70°C. Advanced digital diagnostics provide real-time monitoring of key parameters, including temperature, voltage, and optical power. The transceiver’s robust design adheres to RoHS standards, ensuring environmentally friendly deployment. With its compact form factor and reliable performance, the QSFP28 PSM4 transceiver is an ideal solution for high-speed, short-distance optical networking.

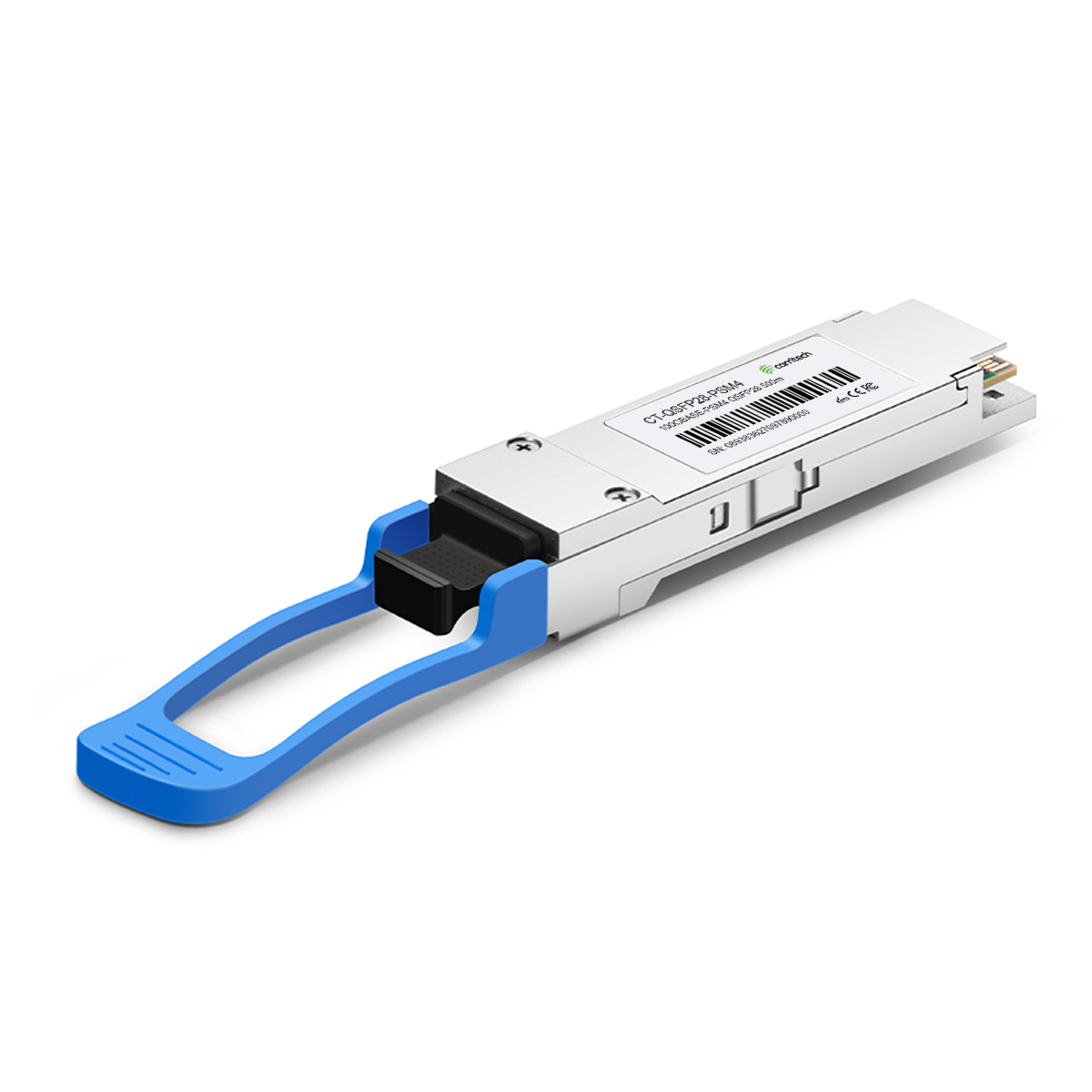

The CT-QSFP28-PSM4 is a pluggable parallel fiber QSFP28 module designed for 100G Ethernet interconnects. It provides 4 independent transmit and receive channels, each operating at up to 25.78125 Gb/s, for an aggregate 104 Gb/s. Transmission uses a 1310 nm DFB laser array over 8-fiber MPO cable, supporting distances up to 2 km on G.652 SMF. The module consumes < 3.5 W, operates from a single +3.3 V supply, and includes integrated digital diagnostics monitoring (DDM/DOM). It is fully hot-pluggable and RoHS-6 compliant.
Form factor / standards: QSFP28 MSA; hot-pluggable.
Data rate: 4×25.78125 Gb/s (aggregate 104 Gb/s).
Reach: Up to 2 km over G.652 SMF.
Optical wavelengths: 1310 nm (4-channel parallel).
Connector: MPO-12 (8 fibers used: 4 TX, 4 RX).
Power consumption: < 3.5 W.
Supply voltage: 3.135–3.465 V.
Operating case temp: 0 °C to 70 °C.
Diagnostics: Digital diagnostics monitoring (DDM/DOM).
Compliance: RoHS-6; Class 1 laser safety (FDA, IEC 60825-1/2); EMI/EMS (FCC, EN55022/EN55024).
| Parameter | Value |
|---|---|
| Wavelength | 1295–1325 nm (TX), 1290–1330 nm (RX) |
| TX avg launch power | −3 to +2.3 dBm |
| TX OMA | −5 to +2.5 dBm |
| Extinction ratio | ≥ 3.5 dB |
| Receiver sensitivity (OMA) | ≤ −8.6 dBm (BER = 1×10⁻¹²) |
| Receiver overload | +2 dBm |
| Receiver damage threshold | +3 dBm |
| LOS assert / de-assert | −30 / −15 dBm |
