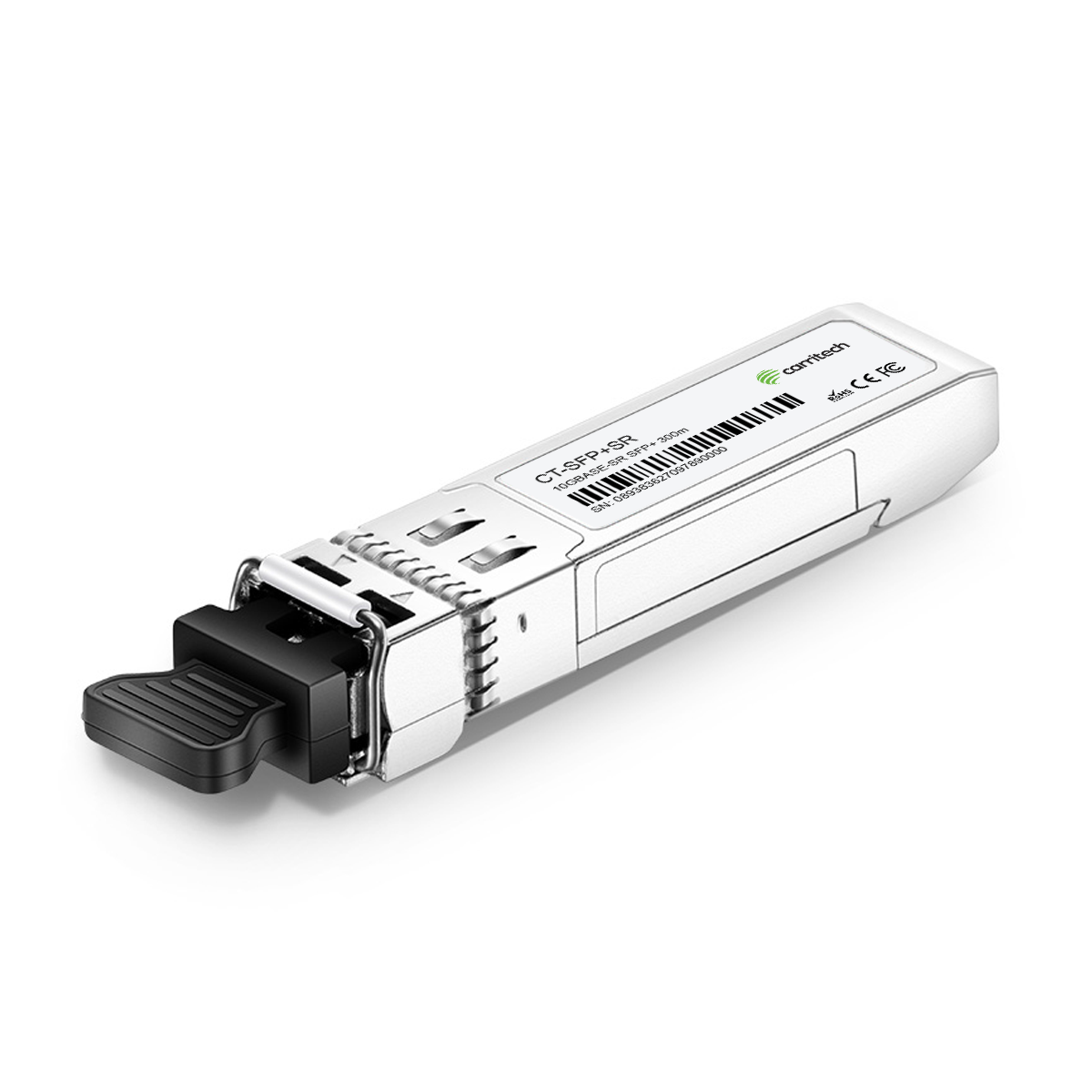

10GBASE-SR SFP+ 300m

The 10Gbps 850nm SFP+ Optical Transceiver is a high-performance module designed for short-distance data communication over multimode fiber (MMF) up to 300 meters. Encased in a compact SFP+ form factor with a duplex LC connector, it integrates an 850nm VCSEL laser and a PIN photodetector for reliable optical transmission. The transceiver supports data rates of up to 10.3125Gbps, making it suitable for applications such as Ethernet and Fiber Channel networks. Compliance with SFF-8472 and IEC-60825 ensures safety and compatibility, while its RoHS certification underscores its environmental responsibility.

The transceiver operates efficiently within a supply voltage range of 3.15V to 3.45V and a commercial temperature range of 0°C to +70°C. It consumes less than 1W of power, offering energy-efficient performance. Designed to minimize electromagnetic interference (EMI) and provide excellent electrostatic discharge (ESD) protection, this module is a dependable choice for high-performance networking environments.

Optically, the transmitter operates at a center wavelength of 850nm, with an average output power ranging from -5dBm to -1dBm and an extinction ratio of 3.0dB. The receiver is optimized for wavelengths centered around 850nm, offering a sensitivity of -11.5dBm and an overload threshold of -3dBm. Diagnostic features such as Loss of Signal (LOS) detection ensure enhanced monitoring and fault detection for stable operations.

Electrically, the module supports a differential impedance of 100Ω, with input swing differentials ranging from 180mV to 700mV for the transmitter and output swing differentials from 300mV to 800mV for the receiver. Advanced diagnostics adhering to SFF-8472 standards enable real-time monitoring of key parameters such as temperature, voltage, bias current, transmitted optical power, and received optical power. Alarm and warning flags provide alerts for deviations from factory-set operational ranges.

In summary, the 10Gbps 850nm SFP+ Optical Transceiver is a reliable and efficient solution for short-distance networking applications. Its advanced features and compliance with industry standards make it an ideal component for modern data communication infrastructures.

This hot-pluggable SFP+ module operates at 10.3125 Gbps using an 850 nm VCSEL laser and PIN photodiode receiver. It supports up to 300 m over OM3 multimode fiber (2000 MHz·km) and offers interoperability across a wide range of MMF types. Power dissipation is below 1 W, with a single 3.15–3.45 V supply. The unit complies with SFF-8472 digital diagnostics, RoHS, and IEC 60825 Class 1 laser safety.

Key parameters

• Form factor / connector: SFP+ with duplex LC.
• Data rate: 10.3125 Gbps.
• Reach: Up to 300 m over OM3 MMF (2000 MHz·km). Shorter distances over lower-bandwidth MMF:
  • 26 m @ 62.5 µm, 160 MHz·km
  • 33 m @ 62.5 µm, 200 MHz·km
  • 66 m @ 50 µm, 400 MHz·km
  • 82 m @ 50 µm, 500 MHz·km
• Wavelength: Tx: 840–860 nm; Rx: 850 nm.
• Tx output power: −5 to −1 dBm.
• Receiver sensitivity: ≤ –11.5 dBm (stressed sensitivity –7.5 dBm).
• Receiver overload: –3 dBm max.
• Extinction ratio: ≥ 3.0 dB.
• Power consumption: <1 W, single 3.3 V supply.
• Diagnostics: Monitors temperature, voltage, Tx bias, Tx/Rx optical power.
• Operating case temperature: 0 °C to +70 °C.
• Compliance: SFF-8472, RoHS, IEC 60825 Class 1 laser.
