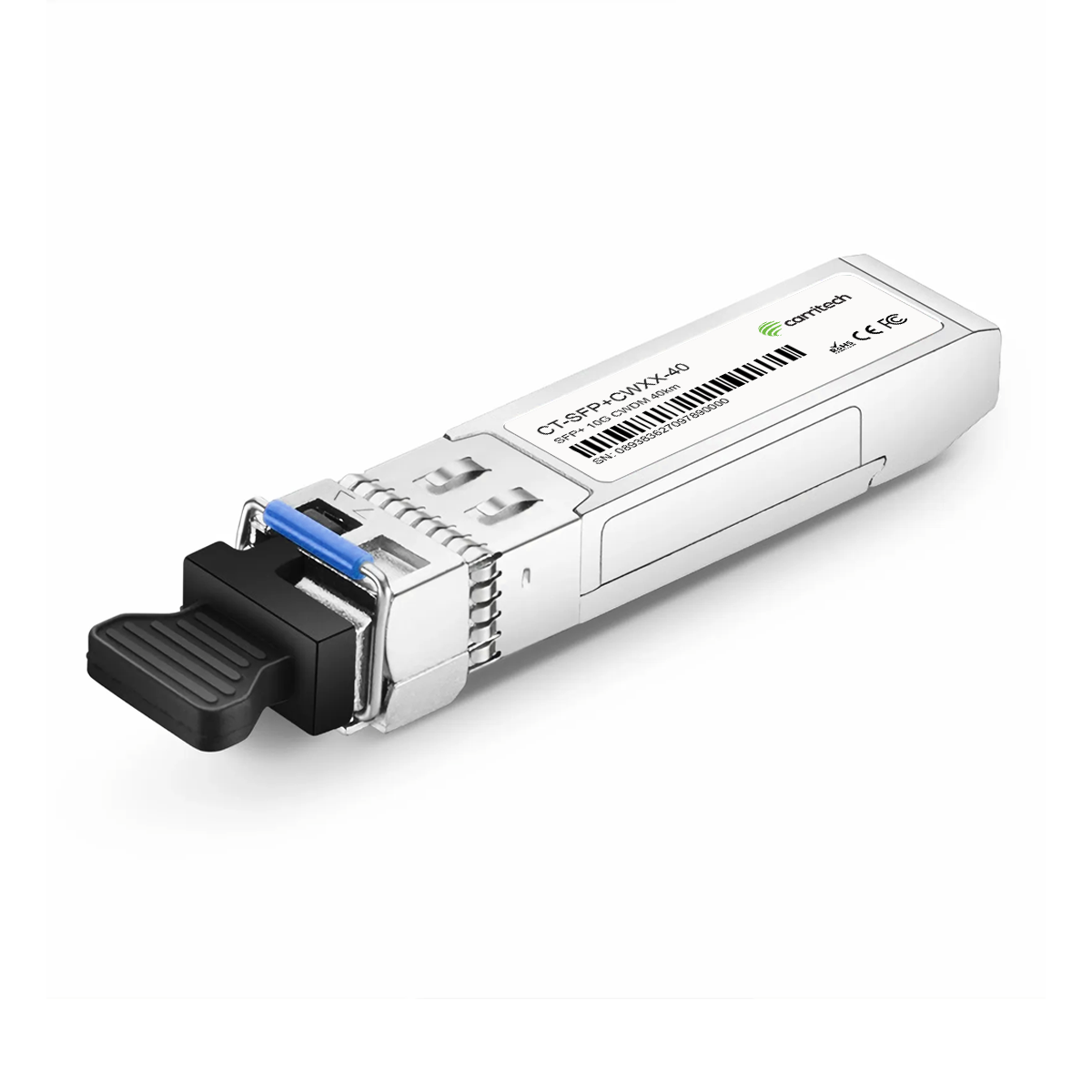

10G CWDM SFP+ 1470-1610NM 40KM
Carritech CT-SFP+CWXX-40 is a 10Gbps CWDM SFP+ optical transceiver designed for single-mode fiber links up to 40 km. Available in multiple CWDM wavelengths (1470–1610 nm), it uses an EML laser and PIN receiver, with integrated digital diagnostics for reliable 10G Ethernet long-reach applications.
Quality assured Tested, compliant and backed by lifetime warranty.
Send us your details and our team will respond with pricing, availability and lead time information.
Send us your details and our team will respond to discuss sample availability and next steps.
The hardware listed below is a selection of key popular equipment, not a complete compatibility list. This transceiver may also be compatible with many other hardware models. Contact us and we can check the exact hardware you need.
Review the technical specifications, applications, features, delivery information and warranty coverage for this product.
The 10Gbps CWDM SFP+ Transceiver (CT-SFP+CWXX-40) is a high-performance module designed for long-distance optical communication over single-mode fiber (SMF) up to 40 kilometers. It supports data rates up to 11.1Gbps and operates at various CWDM wavelengths, ranging from 1470nm to 1610nm, with a channel spacing of 20nm. The module features a CWDM EML laser and PIN receiver, ensuring reliable signal integrity and compliance with IEEE 802.3ae 10GBASE-ER/EW standards. The transceiver is housed in a compact metal enclosure, which reduces EMI, and includes a duplex LC connector for seamless integration into networking systems.
This module operates on a single +3.3V power supply, with a power consumption of less than 1.5W, and functions reliably within a temperature range of 0°C to 70°C. It is hot-pluggable, compliant with SFF-8472 and SFP+ MSA specifications, and supports advanced digital diagnostic monitoring for real-time access to operational parameters such as temperature, voltage, and optical power. Designed for robust and efficient performance, the CT-SFP+CWXX-40 is an environmentally friendly solution, meeting RoHS compliance standards, and is suitable for Ethernet and telecom applications requiring high-speed, long-distance connectivity.
This CWDM SFP+ transceiver supports up to 11.1 Gbps and complies with IEEE 802.3ae 10GBASE-ER/EW, SFF-8431, and SFF-8472 standards. It operates over a 9/125 µm SMF link up to 40 km, using a duplex LC interface. The module is available in CWDM grid wavelengths (1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610 nm). Power dissipation is <1.5 W with a single 3.3 V supply, and the commercial case operating temperature range is 0 °C to +70 °C. It integrates DDMI for monitoring key parameters.
Key Parameters
| Specification | Value | Notes |
|---|---|---|
| Form factor / connector | SFP+ (hot-pluggable), LC duplex | CWDM grid |
| Data rate | Up to 11.1 Gbps | 10.3125 Gbps nominal |
| Reach | Up to 40 km SMF | — |
| Tx wavelengths | 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610 nm | CWDM channels |
| Tx optical power | −1 to +3 dBm | Average |
| Receiver sensitivity | ≤ –15.8 dBm | — |
| Receiver overload | 0.5 dBm max | — |
| Extinction ratio | ≥ 3.5 dB | — |
| Supply voltage | 3.14 – 3.47 V | Single 3.3 V supply |
| Power consumption | <1.5 W | — |
| Diagnostics | Temperature, bias, Tx/Rx power, Vcc | Digital diagnostics (DDMI) |
| Operating case temp. | 0 °C to +70 °C | Commercial grade |
| Compliance | IEEE 802.3ae 10GBASE-ER/EW, SFF-8431, SFF-8472, RoHS, EN 60825 Class 1 | Standards compliant |
