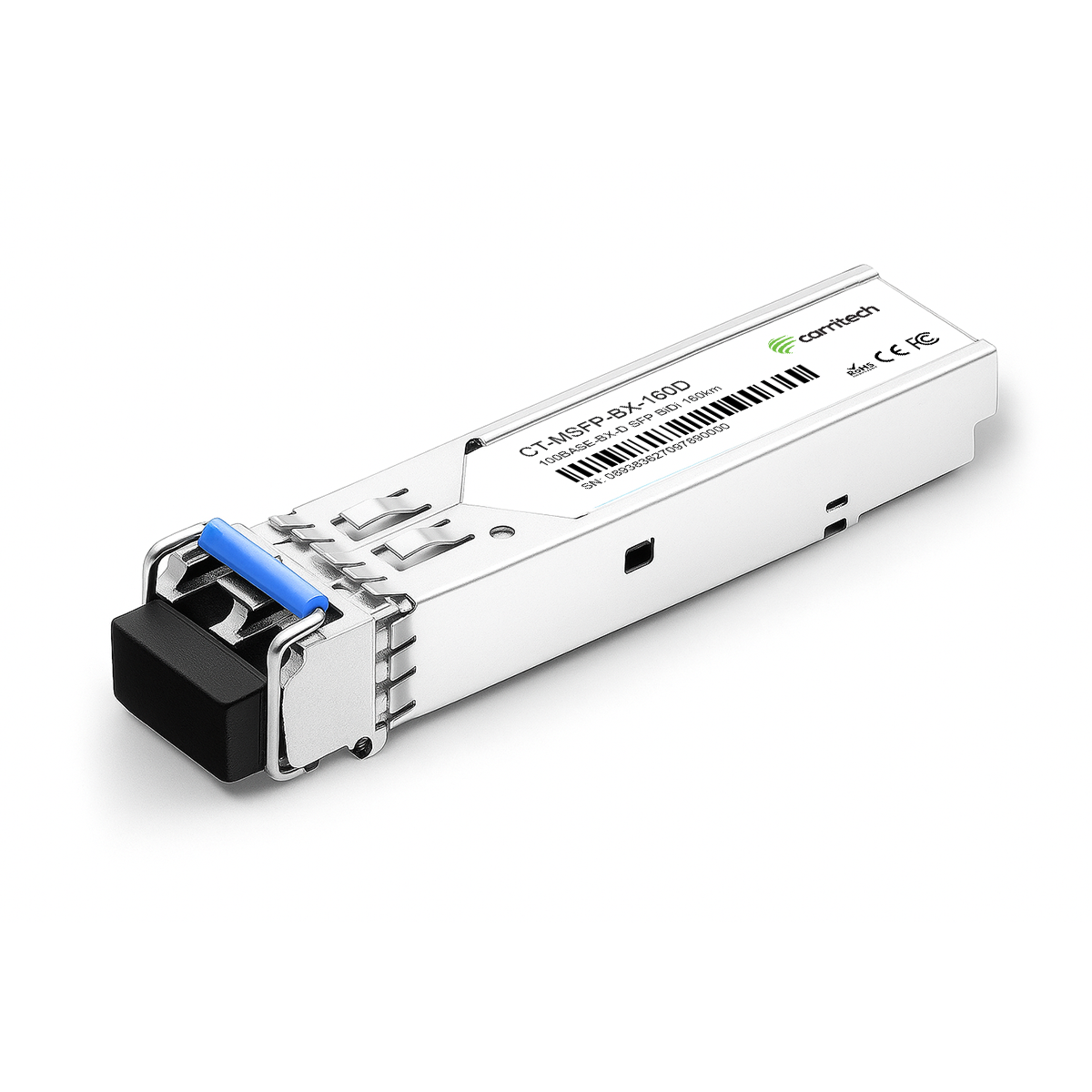

100BASE-BX-D SFP BiDi 1550nm-TX/1490nm-RX 160km DOM Simplex LC SMF Optical Transceiver Module

The 155Mbps Bi-Directional SFP Optical Transceiver is designed for ultra-long-distance communication over single-mode fiber (SMF) up to 160 kilometers. Featuring two configurations—1490nm DFB laser with a 1550nm PIN photodetector, or 1550nm DFB laser with a 1490nm PIN photodetector—the transceiver provides reliable performance for Ethernet, telecom, and Fiber Channel applications. It operates with a single +3.3V power supply and complies with industry standards, including IEC-60825 for laser safety and RoHS for environmental compliance. Its compact SFP package with LC connectors ensures seamless integration into networking systems.

The module offers a transmitter output power of 0dBm to +5dBm with an extinction ratio between 12dB and 18dB, while the receiver sensitivity reaches -36dBm. Additional features include Loss of Signal (LOS) detection and LVPECL-compatible data input/output interfaces. It operates efficiently across commercial (0°C to +70°C) and industrial (-40°C to +85°C) temperature ranges, with low power dissipation of 1W. This transceiver is a dependable solution for high-speed, long-distance optical communication.

• Form factor / standards: SFP MSA; IEEE 802.3z (Gigabit Ethernet); ANSI Fibre Channel.

• Data rate: 1.25 Gb/s.

• Reach: Up to 160 km on G.652 SMF.

• Wavelengths:

  • BX-160U: TX 1490 nm, RX 1550 nm.

  • BX-160D: TX 1550 nm, RX 1490 nm.

• Connector: Simplex LC.

• Power consumption: ≤ 1 W.

• Supply voltage: 3.15–3.45 V.

• Operating case temp: Commercial 0–70 °C; Industrial −40–85 °C.

• Diagnostics: EEPROM with 8B/10B encoding, LOS, TX_DISABLE, TX_FAULT functions.

• Compliance: IEC-60825 Class 1 laser safety; RoHS compliant.

Optical characteristics

• Gigabit Ethernet and Fast Ethernet long-haul transport over SMF.
• Fiber Channel interconnects in metro and telecom networks.
• Telecom backbone and extended-reach metro access where single-fiber efficiency is required.

• Simplex LC BiDi design halves fiber usage.
• 160 km reach over SMF with APD receiver.
• Low power consumption (≤ 1 W) with +3.3 V supply.
• Hot-swappable SFP form factor.
• Compliant with Ethernet, Fibre Channel, IEC-60825, and RoHS standards.
