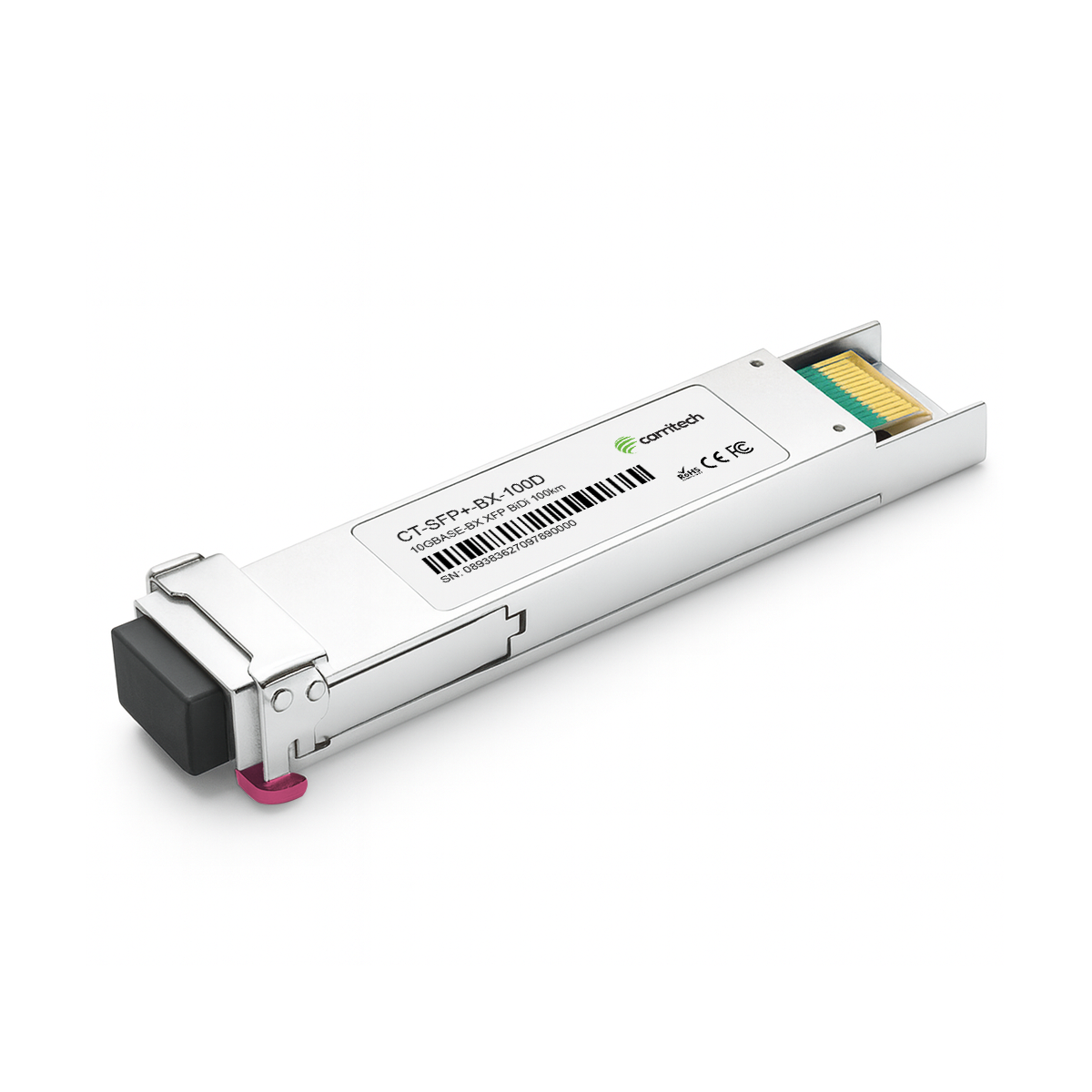

The 10Gbps Bi-Directional SFP+ Optical Transceiver is engineered for long-distance data communication over single-mode fiber (SMF) up to 100 kilometers. It supports data rates from 9.95Gbps to 11.3Gbps and features a cooled EML laser transmitter paired with a high-sensitivity APD receiver for robust performance. Available with configurations of either 1490nm/1550nm or 1550nm/1490nm wavelengths, the transceiver uses a single LC connector for bi-directional transmission, making it highly efficient for 10G Ethernet, SONET OC-192/SDH, and 10G Fiber Channel applications.
Operating on a single +3.3V power supply with a power consumption of less than 3W, the transceiver is RoHS-compliant and designed to function in temperatures ranging from 0°C to 70°C. The transmitter delivers an average optical power output of 0dBm to +5dBm, with an extinction ratio of 8.2dB, while the receiver ensures reliable signal reception with a sensitivity of -23dBm and a loss of signal detection range of -34dBm to -24dBm. Advanced diagnostic monitoring via a 2-wire interface provides real-time tracking of key parameters such as temperature, voltage, bias current, and optical power, making it a dependable choice for long-range, high-speed optical networks.
These compact, hot-pluggable SFP+ modules support data rates from 9.95 to 11.3 Gbps and comply with IEEE 802.3ae 10GBASE-ZR, SFF-8431, SFF-8432, and SFF-8472 standards. They use a simplex LC connector: BX-100U transmits at 1490 nm and receives at 1550 nm, while BX-100D transmits at 1550 nm and receives at 1490 nm. Designed for 100 km reach, they incorporate a cooled EML laser, APD receiver, and digital diagnostics monitoring (DDMI) via a 2-wire interface. Power consumption is <3 W on a single 3.3 V supply, with an operating case temperature range of 0 °C to +70 °C.
Key Parameters
| Specification | CT-SFP+BX-100U | CT-SFP+BX-100D | Notes |
|---|---|---|---|
| Form factor / connector | SFP+ (hot-pluggable), LC simplex | SFP+ (hot-pluggable), LC simplex | Single-fiber bidirectional |
| Data rate | 9.95 – 11.3 Gbps | 9.95 – 11.3 Gbps | IEEE 802.3ae compliant |
| Reach | Up to 100 km SMF | Up to 100 km SMF | Long-haul |
| Tx wavelength | 1490 nm | 1550 nm | Cooled EML laser |
| Rx wavelength | 1550 nm | 1490 nm | APD receiver |
| Tx optical power | 0 to +5 dBm | 0 to +5 dBm | Average |
| Optical modulation (OMA) | ≥ –2.1 dBm | ≥ –2.1 dBm | — |
| Receiver sensitivity | ≤ –23 dBm | ≤ –23 dBm | — |
| Receiver overload | –7 dBm max | –7 dBm max | — |
| Extinction ratio | ≥ 8.2 dB | ≥ 8.2 dB | — |
| Dispersion penalty | ≤ 3 dB | ≤ 3 dB | — |
| Relative intensity noise | ≤ –128 dB/Hz | ≤ –128 dB/Hz | — |
| Supply voltage | 3.135 – 3.465 V | 3.135 – 3.465 V | Single 3.3 V supply |
| Power consumption | <3 W | <3 W | Typ. ~1.8 W |
| Diagnostics | Temp., bias, Tx/Rx power, Vcc | Temp., bias, Tx/Rx power, Vcc | Digital diagnostics (DDMI) |
| Operating case temp. | 0 °C to +70 °C | 0 °C to +70 °C | Commercial |
| Compliance | IEEE 802.3ae 10GBASE-ZR, SFF-8431, SFF-8432, SFF-8472, RoHS, EN 60825 Class 1 | Same | Standards compliant |
