This SFP is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The SFP converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.
The high performance 1490/1550nm 1550/1490nm cooled EML transmitter and high sensitivity APD receiver provide superior performance for Ethernet applications at up to 10km links.
The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-ZR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
The fully SFP compliant form factor provides hot plug-ability, easy optical port upgrades and low EMI emission.

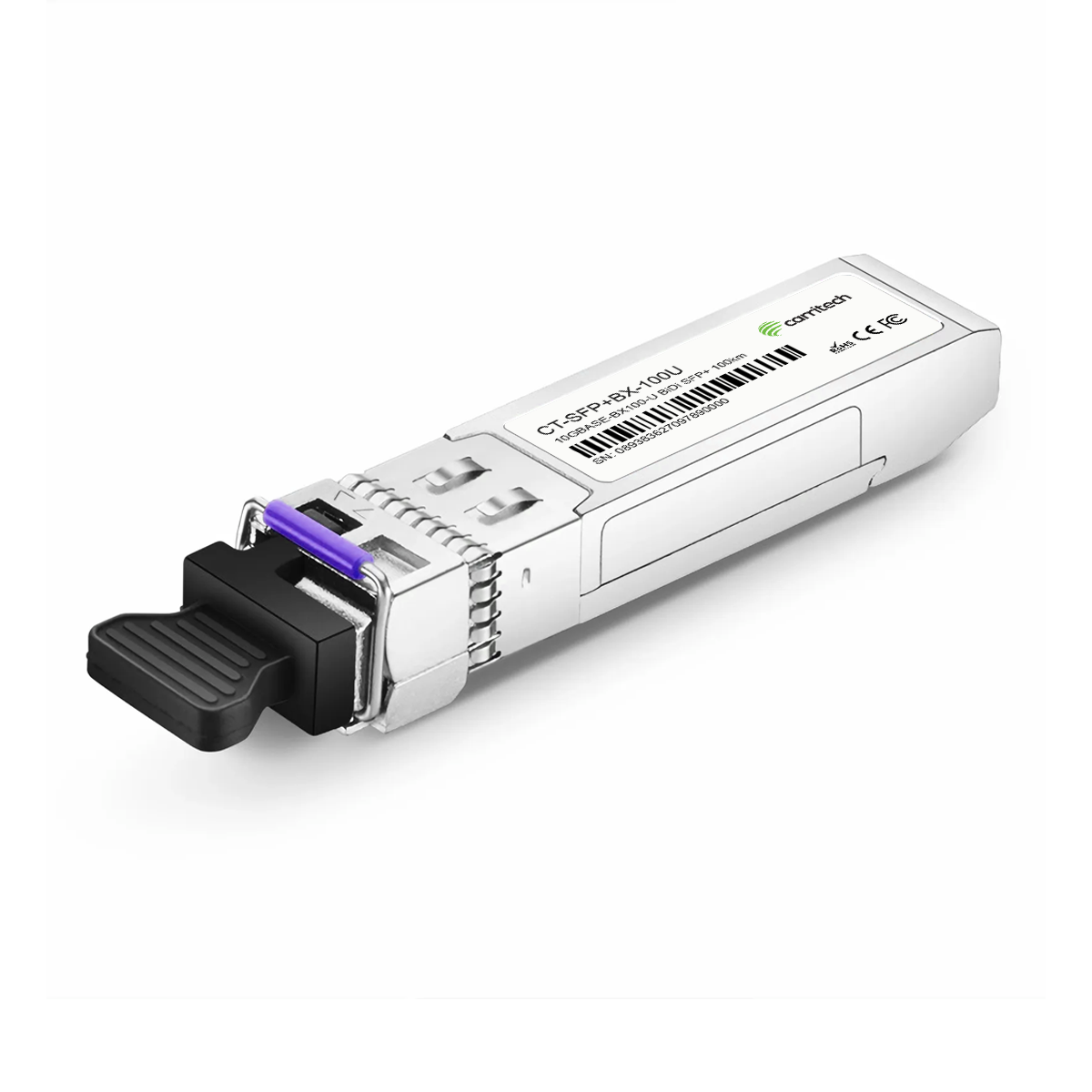

These bi-directional SFP+ modules support bit rates from 9.95 to 11.3 Gbps, compliant with IEEE 802.3ae 10GBASE-ZR, SFF-8431, and SFF-8432 standards. They use a single LC connector for both transmission and reception, with CT-SFP+BX-100U transmitting at 1490 nm and receiving at 1550 nm, while CT-SFP+BX-100D transmits at 1550 nm and receives at 1490 nm. Designed for long-haul links up to 100 km, the modules integrate a cooled EML laser, APD-based receiver, and digital diagnostics monitoring via I²C per SFF-8472. With <3 W power consumption and an operating case temperature range of 0 °C to +70 °C, they deliver stable long-distance performance.
Key Parameters
| Specification | CT-SFP+BX-100U | CT-SFP+BX-100D | Notes |
|---|---|---|---|
| Form factor / connector | SFP+ (hot-pluggable), LC simplex | SFP+ (hot-pluggable), LC simplex | Single-fiber bi-directional |
| Data rate | 9.95 – 11.3 Gbps | 9.95 – 11.3 Gbps | IEEE 802.3ae compliant |
| Reach | Up to 100 km SMF | Up to 100 km SMF | Long-haul transmission |
| Tx wavelength | 1490 nm | 1550 nm | Cooled EML laser |
| Rx wavelength | 1550 nm | 1490 nm | APD receiver |
| Tx optical power | 0 to +5 dBm | 0 to +5 dBm | Average |
| Receiver sensitivity | ≤ –23 dBm | ≤ –23 dBm | Typical |
| Receiver overload | –7 dBm max | –7 dBm max | — |
| Extinction ratio | ≥ 8.2 dB | ≥ 8.2 dB | — |
| Supply voltage | 3.135 – 3.465 V | 3.135 – 3.465 V | Single 3.3 V supply |
| Power consumption | <3 W | <3 W | — |
| Diagnostics | Temperature, bias, Tx/Rx power, Vcc | Temperature, bias, Tx/Rx power, Vcc | Digital diagnostics (DDMI) |
| Operating case temp. | 0 °C to +70 °C | 0 °C to +70 °C | Commercial range |
| Compliance | SFF-8431, SFF-8432, IEEE 802.3ae, SFF-8472, RoHS, EN 60825 Class 1 | Same | Standards compliant |
