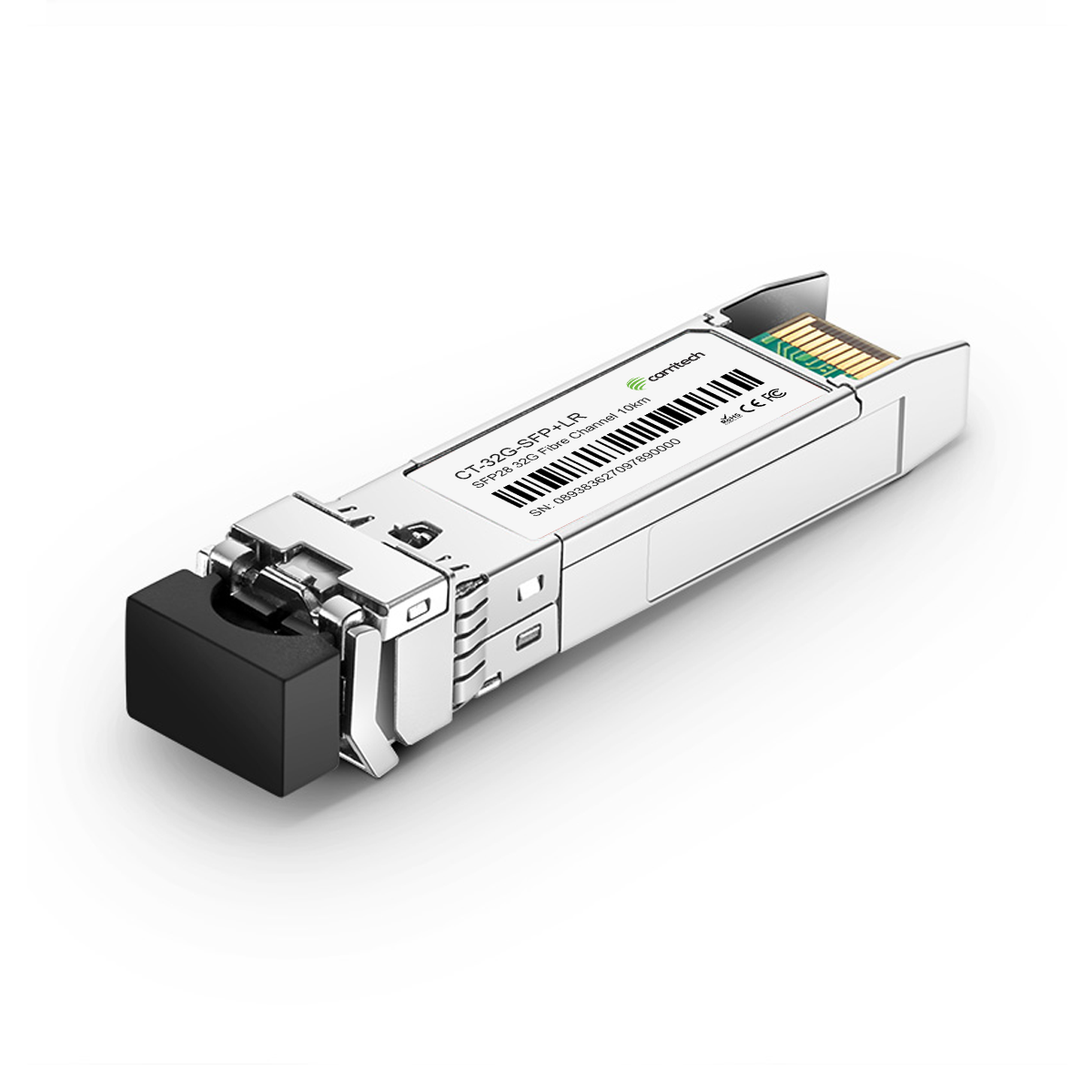

The 32Gbps Fibre Channel SFP28 LR Transceiver is a high-performance module designed for long-distance optical communication over single-mode fiber (SMF) up to 10 kilometers. It supports data rates of 28.05Gbps and is optimized for 16G/32G Fibre Channel applications. The transceiver integrates a 1310nm DFB laser and a PIN photodiode with a trans-impedance preamplifier (TIA), ensuring reliable and efficient signal transmission. Its compliance with the SFP28 MSA and SFF-8472 standards guarantees compatibility with a wide range of networking equipment. Additionally, the module features a duplex LC interface and operates on a single +3.3V power supply.
The transceiver is available in two grades: standard (0°C to 70°C) for commercial use and industrial (-40°C to 85°C) for deployment in harsher environments. With power consumption of only 1.2W, it offers energy-efficient performance. The transmitter delivers an average optical output power between -7dBm and +2dBm with an extinction ratio of 4dB, while the receiver provides sensitivity down to -11.6dBm. Advanced diagnostic capabilities include real-time monitoring of parameters like temperature, voltage, bias current, and optical power, making the transceiver a reliable choice for high-speed data communication.
This hot-pluggable SFP28 module supports line rates up to 28.05 Gbps, enabling both 16G and 32G Fibre Channel operation. It complies with SFP+ MSA and SFF-8472 standards and operates up to 10 km over 9/125 µm SMF with a duplex LC connector. The module uses a 1310 nm DFB transmitter and PIN/TIA receiver, with power consumption <1.5 W from a single 3.3 V supply. Available in commercial (0 °C to +70 °C) and industrial (−40 °C to +85 °C) temperature grades, it includes DDMI for real-time monitoring of optical parameters.
Key Parameters
| Specification | Value | Notes |
|---|---|---|
| Form factor / connector | SFP28 (hot-pluggable), LC duplex | SFP+ MSA |
| Data rate | Up to 28.05 Gbps | Supports 16GFC & 32GFC |
| Reach | Up to 10 km SMF | — |
| Tx wavelength | 1270 – 1350 nm (1310 nm nominal) | DFB laser |
| Spectral width | ≤ 1 nm | — |
| Side-mode suppression | ≥ 30 dB | — |
| Tx optical power | −7 to +2 dBm | Average |
| Extinction ratio | ≥ 4 dB | — |
| Receiver wavelength | 1260 – 1600 nm | PIN photodiode |
| Receiver sensitivity | ≤ −11.6 dBm | BER ≤ 1E−6 at 28.05 Gbps |
| Receiver overload | +2 dBm max | — |
| LOS assert/de-assert | −30 dBm / −15 dBm | 0.5 dB hysteresis |
| Supply voltage | 3.13 – 3.47 V | Single 3.3 V supply |
| Power consumption | <1.5 W (Typ. 400 mA) | — |
| Diagnostics | Temp., bias, Tx/Rx power, Vcc | Digital diagnostics (DDMI) |
| Operating case temp. | 0 °C to +70 °C (commercial), −40 °C to +85 °C (industrial) | — |
| Compliance | SFP+ MSA, SFF-8472, RoHS, EN 60825 Class 1 | Standards compliant |
