Specifications

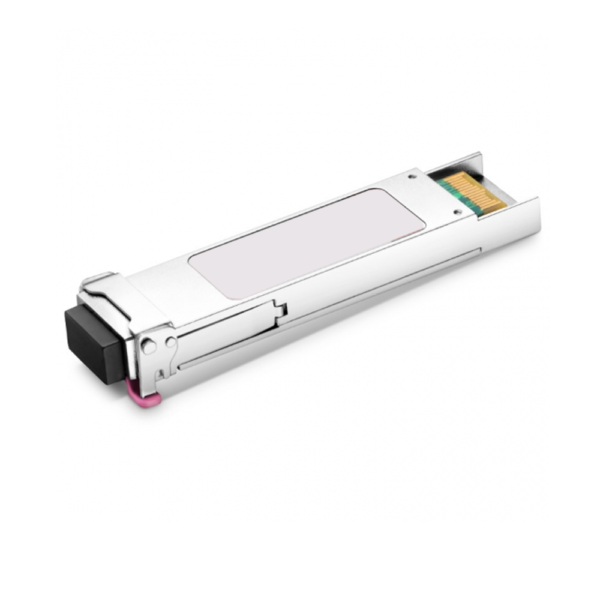

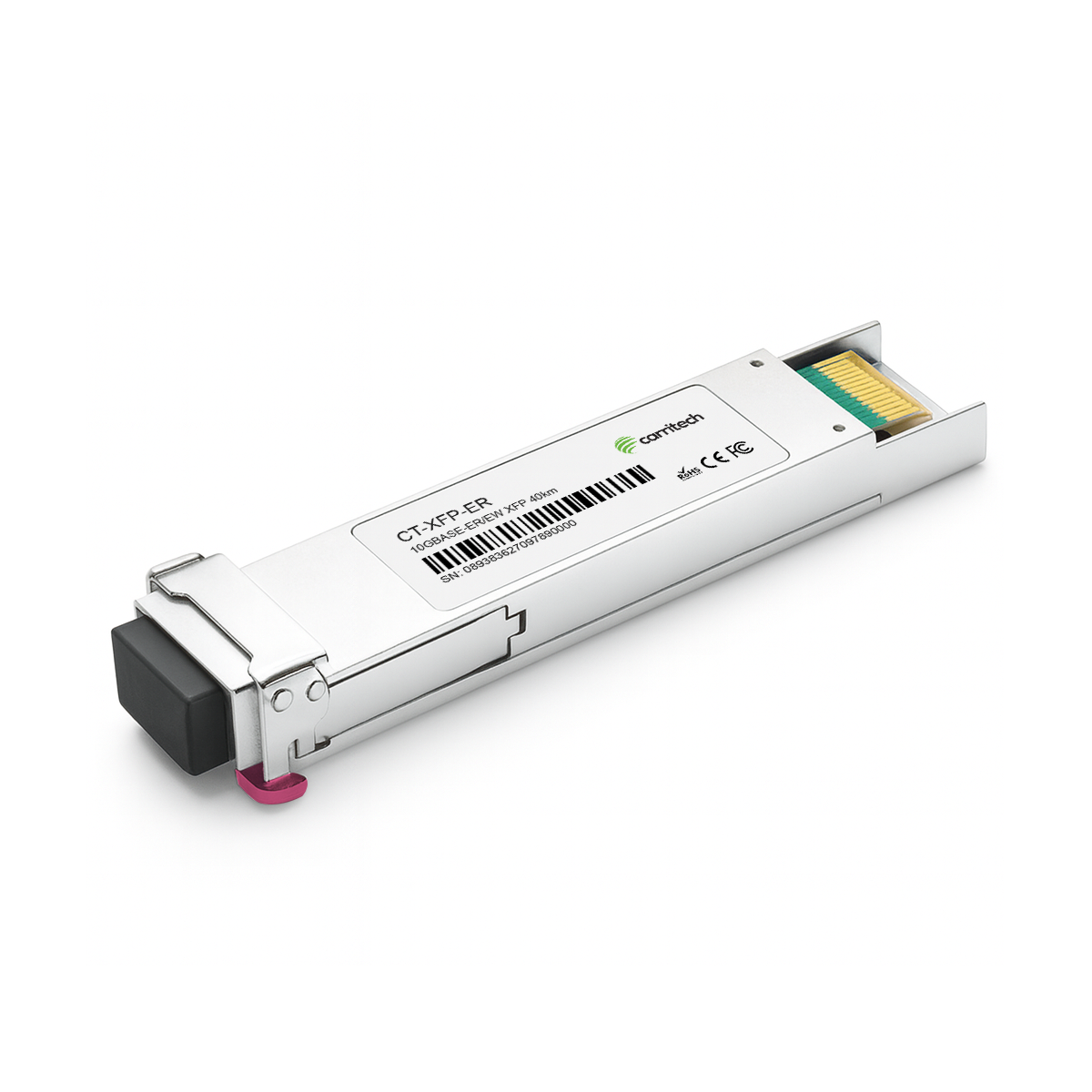

The 10Gbps 1550nm XFP Optical Transceiver is a high-performance module designed for long-range optical communication over single-mode fiber (SMF) up to 40 kilometers. It supports data rates ranging from 9.95Gbps to 11.1Gbps and integrates a 1550nm cooled EML laser and a PIN photodiode receiver for superior optical performance. Encased in an XFP MSA package with a duplex LC connector, this transceiver is ideal for applications such as SONET OC-192/SDH STM-64, 10GE Ethernet, and 10G Fiber Channel networks. The module complies with IEEE 802.3ae standards and features digital diagnostic functions accessible via a 2-wire serial interface.
Operating on both +5V and +3.3V power supplies, the transceiver is energy-efficient with a power dissipation of less than 3.5W. It is designed for commercial use, with an operating temperature range from -5°C to 70°C. The module’s robust construction ensures stable operation across a variety of network environments and complies with RoHS standards for environmentally friendly design.
Optically, the transceiver offers a center wavelength range of 1530nm to 1565nm. It delivers an average output power of -1dBm to +2dBm with an extinction ratio of 8.2dB. The receiver has a sensitivity of -12.3dBm and a saturation power of +0.5dBm, supporting wavelengths from 1270nm to 1600nm. Advanced features such as Loss of Signal (LOS) detection enhance diagnostic capabilities, with LOS asserted at -30dBm and deasserted at -16dBm.
Electrically, the module supports a differential input impedance of 100Ω, with input swing differentials from 180mV to 700mV. It features advanced diagnostic capabilities, including real-time monitoring of temperature, voltage, bias current, and optical power. Alarm and warning thresholds ensure optimal operation within factory-set parameters.
In summary, the 10Gbps 1550nm XFP Optical Transceiver is a reliable and efficient solution for high-speed, long-distance networking. Its robust design, advanced features, and compliance with industry standards make it an essential component for modern telecommunications and data center infrastructures.
This hot-pluggable XFP module operates between 9.95 and 11.1 Gbps and complies with IEEE 802.3ae 10GBASE-ER/EW, SONET OC-192/SDH STM-64, and XFP MSA standards. It supports SMF links up to 40 km via a duplex LC interface. The design incorporates a cooled 1550 nm EML transmitter and high-sensitivity PIN receiver with DDMI accessible through a 2-wire interface. Power dissipation is <3.5 W, with dual supply support (+5 V and +3.3 V). Operating case temperature is 0 °C to +70 °C.
Key Parameters
| Specification | Value | Notes |
|---|---|---|
| Form factor / connector | XFP (hot-pluggable), LC duplex | XFP MSA |
| Data rate | 9.95 – 11.1 Gbps | 10.3125 Gbps nominal |
| Reach | Up to 40 km SMF | — |
| Tx wavelength | 1530 – 1565 nm (1550 nm nominal) | Cooled EML laser |
| Tx optical power | −1 to +2 dBm | Average |
| Laser off power | ≤ –30 dBm | — |
| Extinction ratio | ≥ 8.2 dB | — |
| Side-mode suppression | ≥ 30 dB | — |
| Dispersion penalty | ≤ 2 dB | — |
| Receiver type | PIN photodiode | — |
| Receiver sensitivity | ≤ –12.3 dBm | BER ≤ 10⁻¹² |
| Stressed sensitivity | –10.3 dBm | At 10.3125 Gbps |
| Receiver overload | +0.5 dBm max | — |
| LOS assert/de-assert | –30 dBm / –16 dBm | 0.5 dB hysteresis |
| Supply voltage | +5 V (4.75–5.25 V), +3.3 V (3.13–3.47 V) | Dual supply |
| Power consumption | <3.5 W | — |
| Diagnostics | Temperature, bias, Tx/Rx power, Vcc | Digital diagnostics (DDMI) |
| Operating case temp. | 0 °C to +70 °C | Commercial range |
| Compliance | IEEE 802.3ae 10GBASE-ER/EW, SONET OC-192/SDH STM-64, Fibre Channel, XFP MSA, RoHS, EN 60825 Class 1 | Standards compliant |
