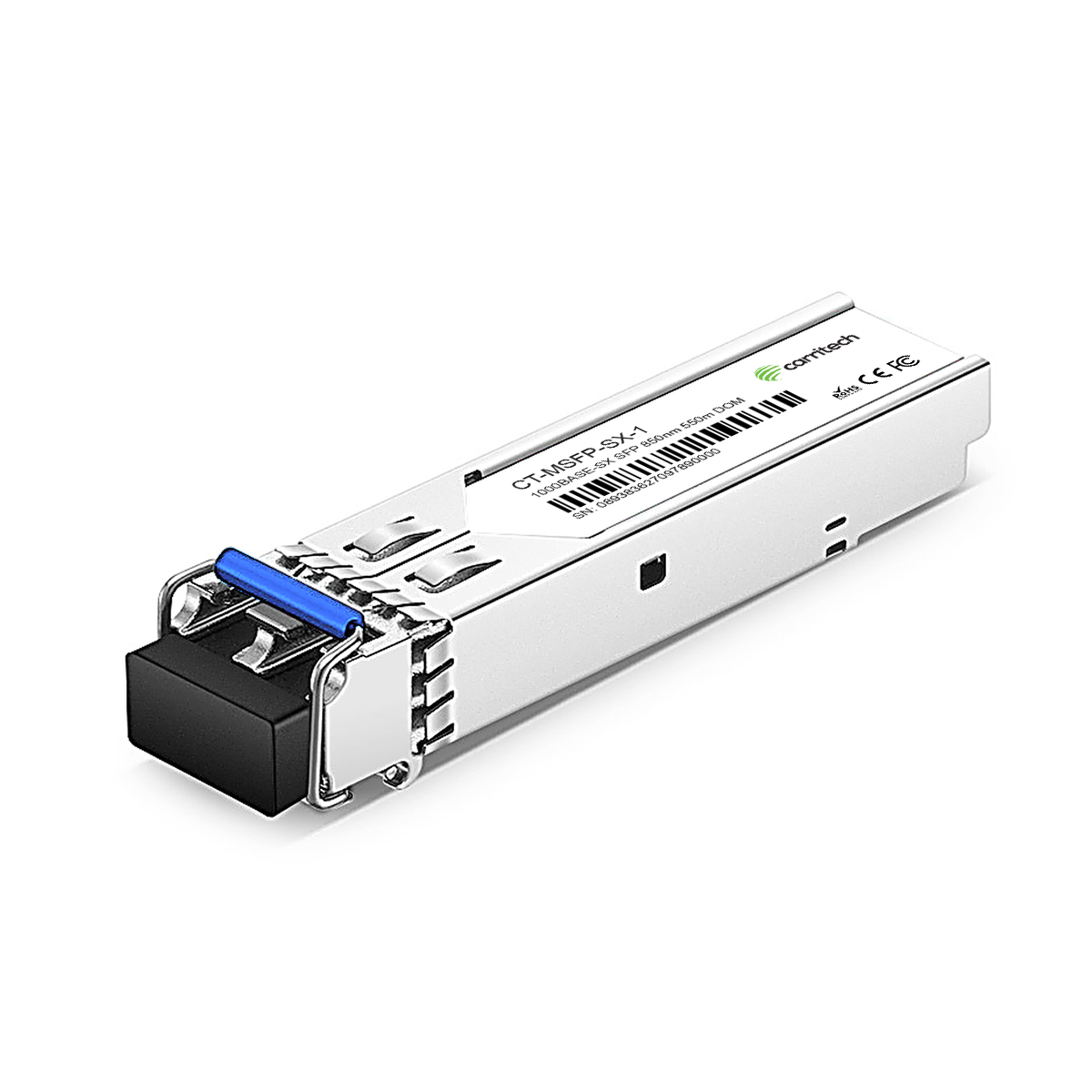

The 1000BASE-SX SFP 850nm 155Mbps SFP Optical Transceiver is an advanced module designed for short-range optical data transmission. This model enables communication over multimode fiber (MMF) up to a distance of 550 meters, making it ideal for Ethernet, telecommunications, and Fiber Channel applications. It utilizes an 850nm VCSEL laser and a PIN photodetector to deliver reliable performance. Housed in an SFP package with an LC connector, it ensures seamless integration into various networking environments. The module operates on a single +3.3V power supply and features LVPECL-compatible data input/output interfaces. It also complies with IEC-60825 laser safety standards and RoHS regulations, ensuring adherence to safety and environmental guidelines.
This transceiver is engineered to operate in diverse conditions, supporting supply voltages ranging from 3.15V to 3.45V. It functions effectively in commercial temperature ranges of 0°C to +70°C and can endure more demanding industrial conditions, with a range of -40°C to +85°C. Its power dissipation remains under 1W, offering energy efficiency alongside a steady data rate of 155Mbps. Additionally, its robust design includes low electromagnetic interference (EMI) and exceptional electrostatic discharge (ESD) protection, ensuring reliable operation in sensitive environments.
The optical characteristics of this transceiver are finely tuned for precision and efficiency. The transmitter operates at a center wavelength of 850nm with an output power range between -8dBm and -3dBm, ensuring clear and consistent signal transmission. Its extinction ratio falls between 12dB and 18dB, optimizing signal clarity. The receiver section accommodates wavelengths from 770nm to 860nm, achieving sensitivity as low as -19dBm. Its overload threshold is -3dBm, making it capable of handling diverse signal conditions while adhering to IEEE 802.3u and ANSI Fiber Channel standards for optical eye diagrams.
Electrical performance is another highlight of this transceiver, featuring a differential impedance of 100Ω for both transmitter and receiver sections. Its input and output swing differentials are adaptable to various configurations, enhancing compatibility with host systems. Defined voltage thresholds for TX Disable and Rx_LOS functionalities allow for precise operational control and monitoring, making this module a versatile choice for networking setups.
The 1000BASE-SX SFP 850nm 155Mbps SFP Optical Transceiver is a compact, efficient, and dependable solution for high-speed optical communication. With its excellent performance specifications, adherence to industry standards, and robust environmental tolerances, it is a key component for modern network infrastructures.
All of our optical transceivers come with a lifetime warranty.
