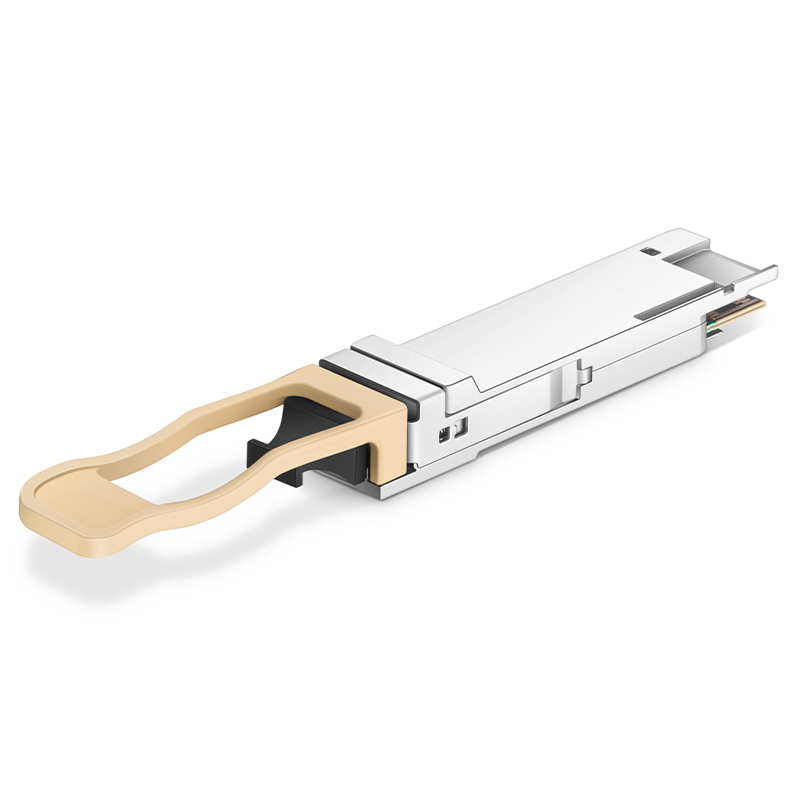

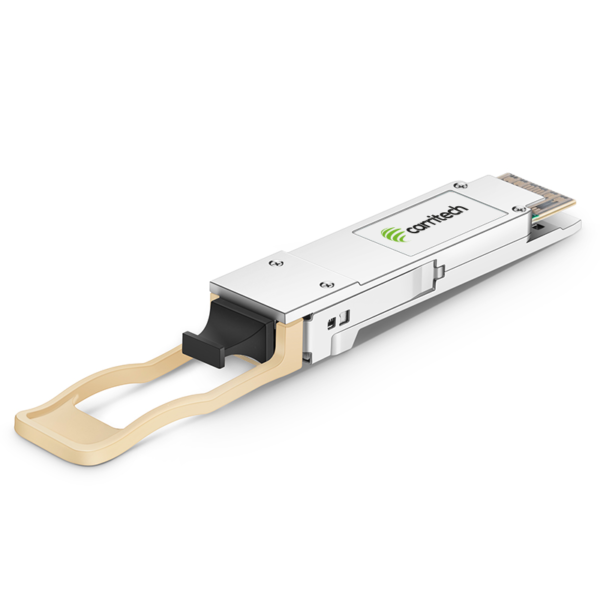

200G QSFP-DD 2SR4 Compatible 200GBASE 2 x SR4 QSFP-DD 850nm 100m DOM MPO-24/UPC MMF Optical Transceiver Module

PN: CT-200G-QDD-2SR4

No manufacturer part numbers found for this product.

200G QSFP-DD 2SR4 850NM 100M

This transceiver is a high-performance module for short-range multi-lane data communication and interconnect applications. It integrates eight data lanes in each direction with 8×25.78125Gbps bandwidth. Each lane can operate at 25.78125Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 76-contact edge type connector. The optical interface utilises a 24-fiber MTP (MPO) connector.

Add to quote

The 200G QSFP-DD 2SR4 compatible QSFP-DD transceiver is designed for multimode fiber (MMF) connections, supporting link lengths of up to 100 meters using MTP/MPO-24/UPC connectors. It adheres to IEEE 802.3bm and QSFP-DD MSA standards, ensuring reliable performance. With integrated digital diagnostics monitoring (DDM), it provides real-time insights into operating conditions. Ideal for 2×100GBASE-SR4 Ethernet, data centers, and switch and router applications, this transceiver delivers high-speed connectivity with robust compatibility.

This transceiver is a high-performance module for short-range multi-lane data communication and interconnect applications. It integrates eight data lanes in each direction with 8×25.78125Gbps bandwidth. Each lane can operate at 25.78125Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 76-contact edge type connector. The optical interface utilises a 24-fiber MTP (MPO) connector.

The 200G QSFP-DD 2SR4 is covered with a lifetime warranty from Carritech.

IEEE 802.3bm 100GBASE SR4

  • 8 channels full-duplex transceiver modules
  • Transmission data rate up to 26Gbps per channel
  • 8 channels 850nm VCSEL array
  • 8 channels PIN photo detector array
  • Internal CDR circuits on both receiver and transmitter channels
  • Support CDR bypass
  • Low power consumption <4W
  • Hot Pluggable QSFP DD form factor
  • Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
  • MPO24 connector receptacle
  • Operating case temperature 0°C to +70°C
  • 3.3V power supply voltage
  • RoHS 6 compliant(lead free)

At Carritech, we pride ourselves on our exceptional service and commitment to meeting our customers’ needs. Our extensive range of SFP transceivers is designed to cater to various requirements, ensuring that you receive the best solutions for your projects. We understand the importance of timely delivery, and our efficient processes are geared towards providing you with the products you need as quickly as possible. Our dedicated team works tirelessly to ensure that your orders are processed and dispatched promptly, so you can rely on us for swift and reliable service.

We recognise that every project is unique, and our flexible approach allows us to adapt to your specific needs. Whether you require immediate delivery or have more complex requirements, we are here to support you every step of the way. Our commitment to customer satisfaction means that we go above and beyond to ensure that you receive your SFP transceivers in a timely manner, without compromising on quality. Trust Carritech to deliver the solutions you need, when you need them.

At Carritech Optics, we stand by the quality and reliability of our optical transceivers. That’s why we proudly offer a lifetime warranty on all products as a testament to our commitment to excellence and customer satisfaction.

What Does Our Lifetime Warranty Cover?

Our lifetime warranty provides comprehensive coverage for the entire lifecycle of your optical transceivers, ensuring you experience complete peace of mind when choosing Carritech Optics. The warranty covers:

  • Defects in Materials and Workmanship: If your product experiences any issues related to manufacturing or materials, we’ll repair or replace it free of charge.
  • Performance Assurance: Our optical transceivers are rigorously tested to meet industry standards, and we guarantee they’ll perform as expected in your network environment.



Easy Claims Process

Should you ever need to make a warranty claim, our team is here to assist you. Simply contact our support team with your product details, and we’ll guide you through a quick and hassle-free process to resolve the issue.

Your Network’s Performance, Guaranteed

Carritech Optics is dedicated to providing high-quality optical solutions that you can trust for the long haul. With our lifetime warranty, you can confidently invest in our products, knowing that we’re with you every step of the way.
