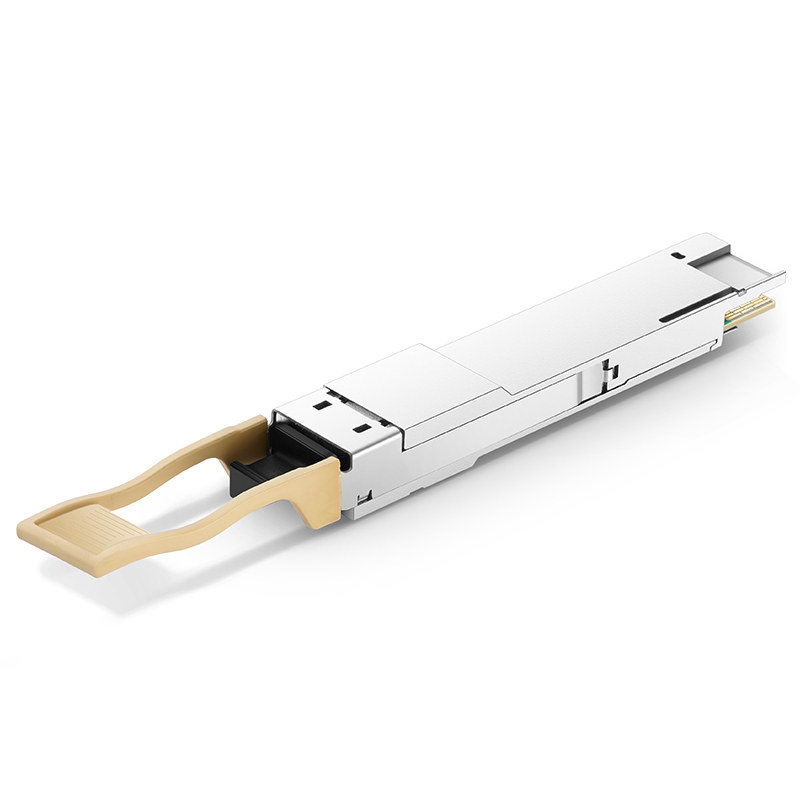

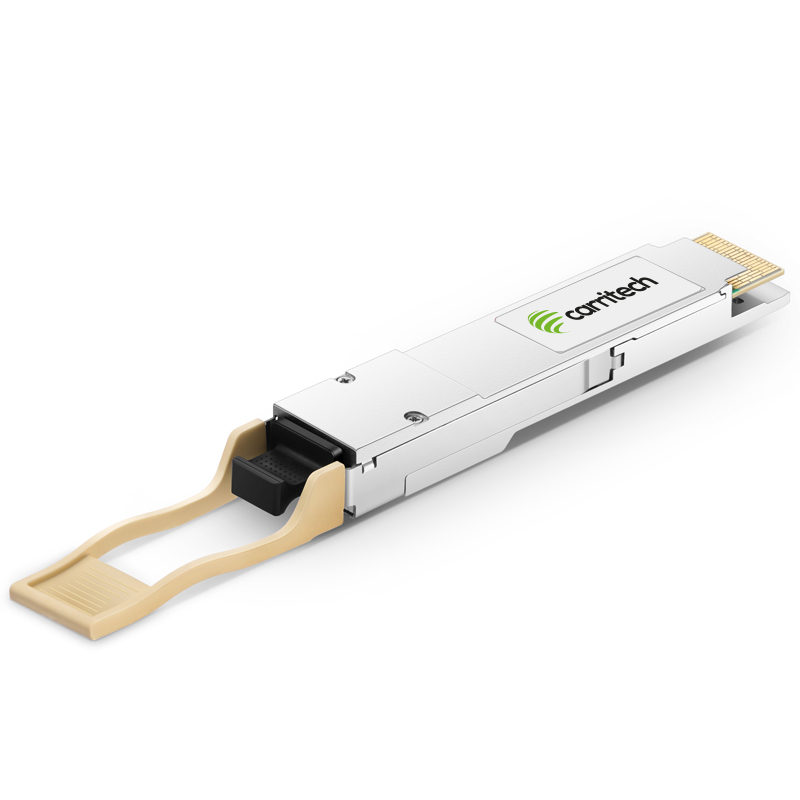

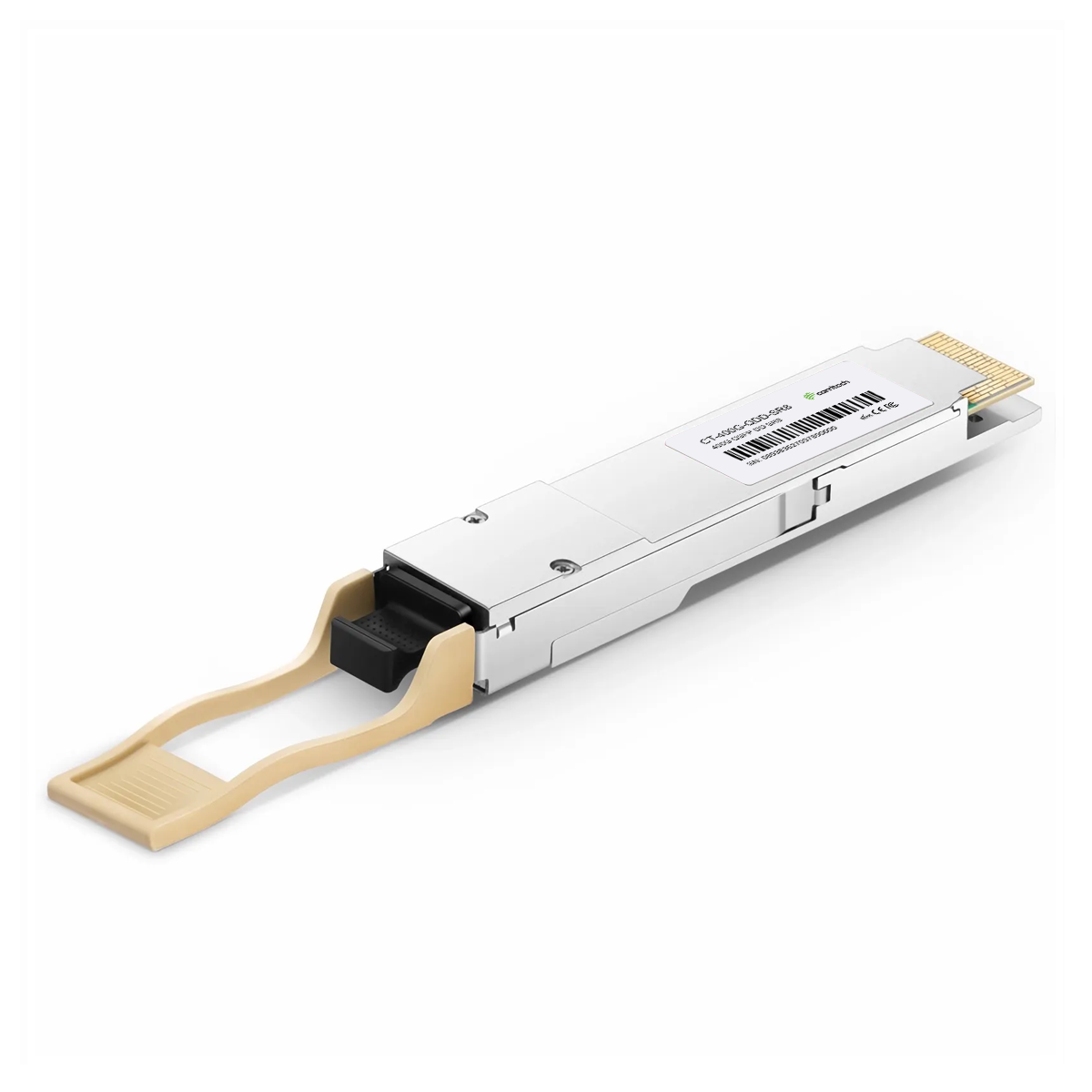

400G QSFP DD SR8 - 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM MPO-16/APC MMF Optical Transceiver Module

The 400Gbps QSFP-DD SR8 Optical Transceiver is a high-performance module designed for short-range data communication over multimode fiber (MMF). It features 8 full-duplex channels, each capable of transmitting up to 53Gbps, resulting in an aggregate bandwidth of 400Gbps. Utilizing an 850nm VCSEL array for transmission and a PIN photodetector array for reception, this module operates over OM3 fiber for distances up to 70 meters and OM4 fiber up to 100 meters, with Forward Error Correction (FEC). The transceiver is housed in a hot-pluggable QSFP-DD form factor and uses an MPO16 APC optical connector, ensuring compatibility with modern networking systems.

Operating with a +3.3V power supply and consuming less than 8.5W, the transceiver is energy-efficient and reliable within a case operating temperature range of 0°C to 70°C. It incorporates internal Clock and Data Recovery (CDR) circuits on both transmitter and receiver channels for enhanced signal integrity. Digital diagnostics monitoring (DDM), accessible via a two-wire interface, allows real-time monitoring of temperature, voltage, and optical power. Fully compliant with QSFP-DD MSA standards, IEEE 802.3cd, and RoHS regulations, this transceiver is ideal for high-speed, short-range Ethernet applications in data centers and cloud networking environments.

IEEE 802.3cd 400GBASE-SR8

• 8 channels full-duplex transceiver modules
• Transmission data rate up to 53Gbps per channel
• 8x53Gbps PAM4 transmitter and PAM4 receiver
• 8 channels 850nm VCSEL array
• 8 channels PIN photo detector array
• Internal CDR circuits on both receiver and transmitter channels
• Power consumption <8.5W
• Hot Pluggable QSFP DD form factor and Compliant with CMIS
• Maximum link length of 70m on OM3 Multi-mode Fiber (MMF)and 100m on OM4 MMF with FEC
• MPO16 APC connector receptacle
• Built-in digital diagnostic functions
• Operating case temperature 0°C to +70°C
• 3.3V power supply voltage
• RoHS compliant(lead free)
