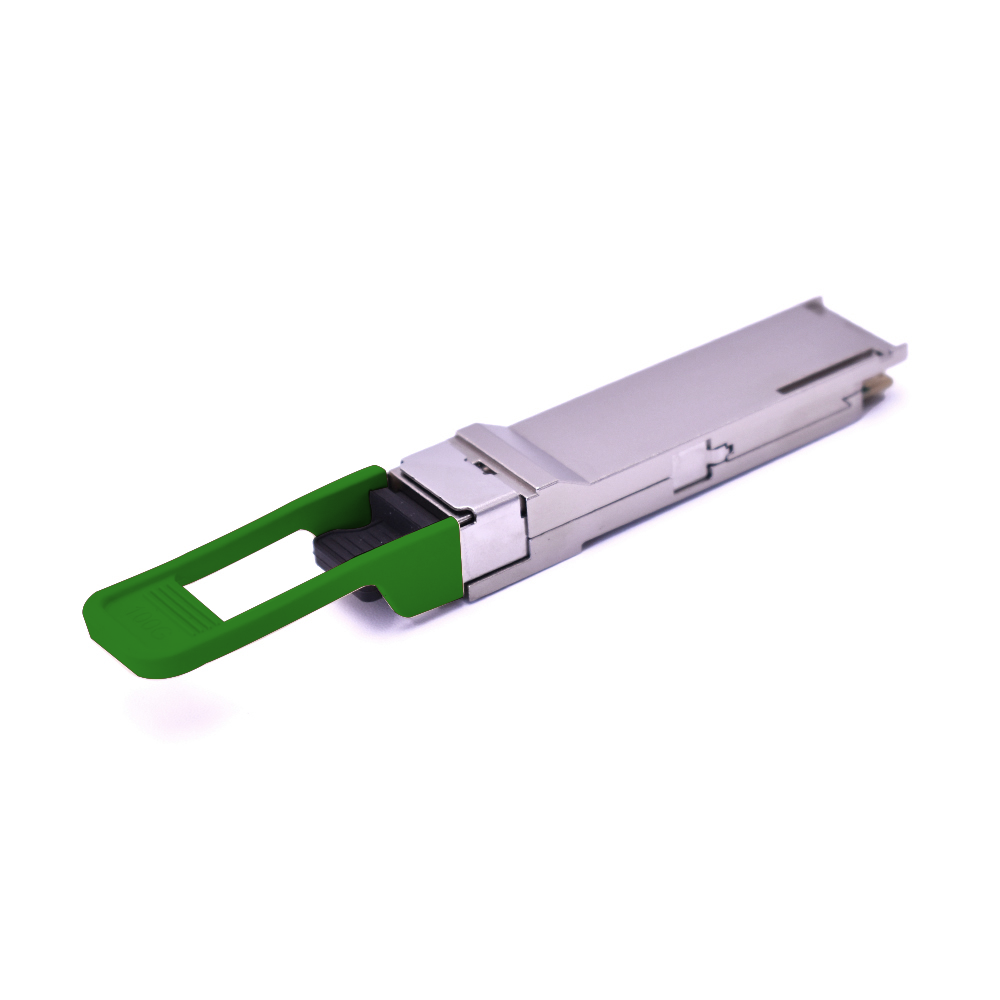

The 100Gbps QSFP28 CWDM4 Optical Transceiver is a high-performance module designed for short-range communication over single-mode fiber (SMF) up to 2 kilometers. Compliant with QSFP28 MSA and 100G CWDM4 MSA standards, this transceiver operates with a 4-lane MUX/DEMUX design that consolidates four 25Gbps channels into a 100Gbps aggregate output. Each of the four CWDM channels utilizes specific wavelengths—1271nm, 1291nm, 1311nm, and 1331nm—to ensure robust and efficient data transmission. Equipped with a duplex LC connector, the module supports host Forward Error Correction (FEC) for maintaining signal integrity across extended distances.
Operating on a single +3.3V power supply with a power consumption of less than 3.5W, the transceiver is energy-efficient and reliable within a temperature range of 0°C to 70°C. It integrates advanced digital diagnostic monitoring to provide real-time feedback on operational parameters such as temperature, voltage, bias current, and optical power. The robust design includes ESD protection and laser safety compliance, making it suitable for applications like data center interconnects, 100G Ethernet, and enterprise networking, where high-speed and reliable performance are critical.
Designed to the QSFP28 MSA and 100G CWDM4 MSA Rev 1.1, this module multiplexes four 25.78125 Gb/s electrical lanes into four CWDM optical lanes and combines them onto a single SMF link; the receiver de-multiplexes and outputs four electrical lanes. It operates from a single 3.3 V supply, supports digital diagnostics (temperature, voltage, per-lane TX/RX power and bias), and is specified for 0 °C to 70 °C case temperature. Interface is duplex LC for optics and 38-pin QSFP28 edge connector for electrical.
Form factor / standard: QSFP28; 100G CWDM4 MSA compliant; 4×25G OIF CEI-28G-VSR electrical interface.
Data rate: 103.1 Gb/s aggregate (4×25.78125 Gb/s).
Reach: Up to 2 km over G.652 SMF with host FEC required.
Optical wavelengths (CWDM grid): 1271, 1291, 1311, 1331 nm.
Connector: Duplex LC.
Power / supply: < 3.5 W max; 3.3 V (VccTx/VccRx/Vcc1).
Operating case temp: 0 °C to 70 °C.
Management & controls: 2-wire (SCL/SDA), ModSelL, ResetL, LPMode, ModPrsL, IntL.
Standards & compliance: ITU-T G.694.2 wavelength grid; RoHS.
Safety/ESD: Laser Class 1 (EN 60825-1:2014; 21 CFR 1040.10/1040.11); ESD 1 kV (HS pins) / 2 kV (others), HBM.
| Parameter | Specification |
|---|---|
| TX avg launch power (per lane) | −6.5 to +2.5 dBm |
| TX OMA (per lane) | −4 to +2.5 dBm |
| Extinction ratio | ≥ 3.5 dB |
| TDP (per lane) | ≤ 3.0 dB |
| RX sensitivity (OMA) | ≤ −10 dBm (BER = 5×10⁻⁵) |
| Stressed RX sensitivity (OMA) | ≤ −7.3 dBm |
| RX overload (damage per lane) | ≥ +3.5 dBm |
| Total avg TX/RX power (module) | ≤ +8.5 dBm |
| RIN | ≤ −130 dB/Hz (12 dB reflection) |
| Optical return loss tolerance | 20 dB |
| Receiver reflectance | ≤ −26 dB |
Electrical performance: CEI-28G-VSR compliant AC characteristics; typical supply current ~1.06 A; Vcc 3.135–3.465 V; control input high 2.0 V to Vcc, low 0–0.8 V.
Absolute maximum ratings (selection): storage −40 to +85 °C; case 0 to +70 °C; Vcc −0.5 to 3.6 V; RH 0–85% non-condensing. Operating beyond absolute maximums may cause permanent damage.
Digital diagnostics (DMI) accuracy: temperature ±3 °C; supply voltage ±0.1 V; per-lane TX/RX power ±2 dB; bias current ±10%.
