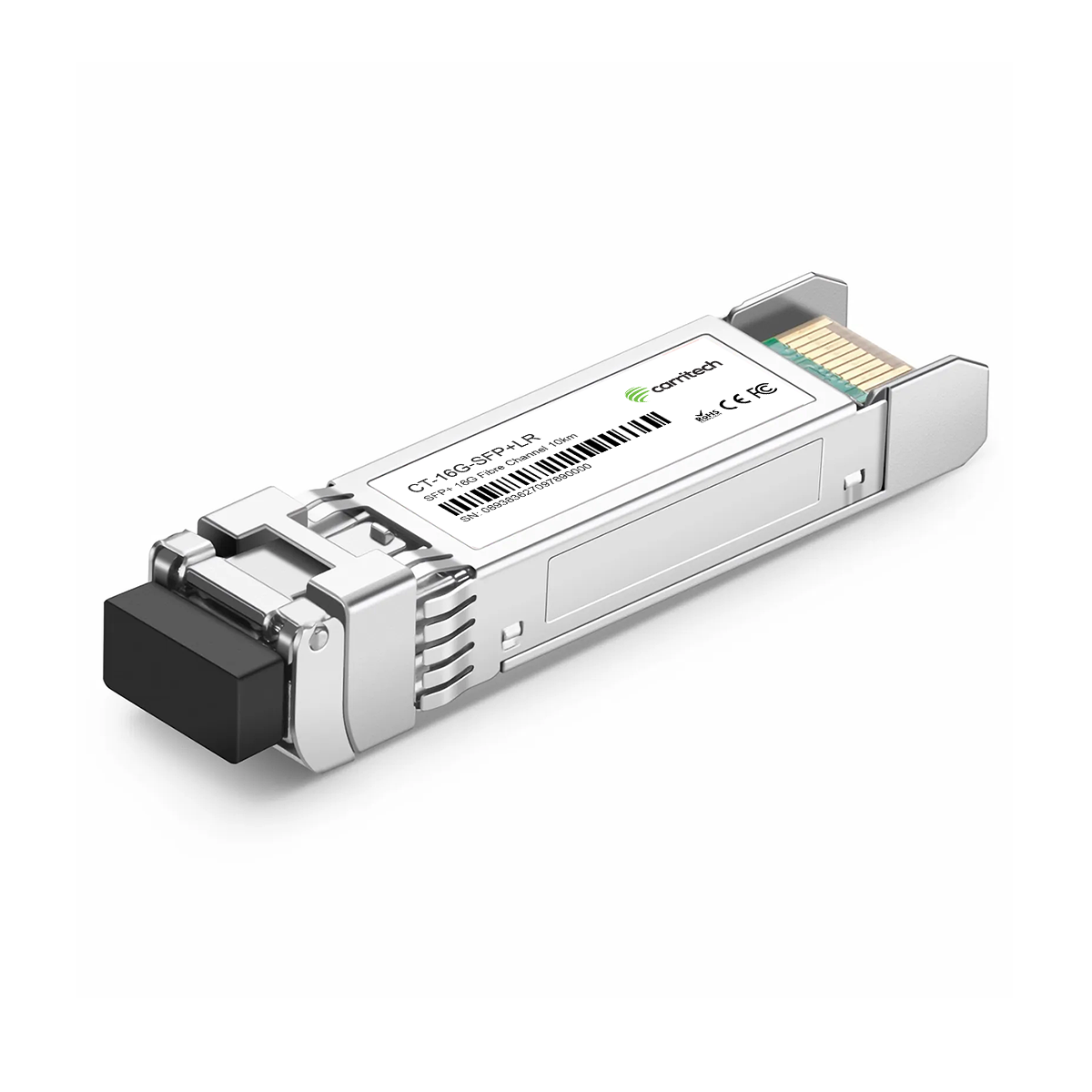

The 14.025Gbps SFP+ Optical Transceiver is a high-performance module designed for long-wavelength transmission over single-mode fiber (SMF) up to 10 kilometers. It integrates a 1310nm DFB laser transmitter and a PIN photodiode receiver, making it ideal for applications in 4.25G, 8.5G, and 14.025G Fibre Channel networks. The transceiver adheres to the SFP+ Multi-Source Agreement (MSA) and is equipped with a duplex LC receptacle, ensuring compatibility with a wide range of network equipment.
This transceiver operates on a single +3.3V power supply and supports hot-pluggable functionality, enabling convenient deployment and maintenance. It features a real-time digital diagnostic monitoring interface compliant with SFF-8472, allowing users to monitor operating parameters such as temperature, voltage, bias current, and optical power. Designed for standard operating conditions, it supports temperatures from 0°C to +70°C and is compatible with RoHS standards for environmentally friendly use.
Optically, the transmitter operates within a center wavelength range of 1270nm to 1350nm, with an average output power ranging from -5dBm to -0.5dBm. The receiver supports a sensitivity of -12dBm and a maximum input power of 0.5dBm, with a wide wavelength acceptance from 1260nm to 1600nm. Loss of Signal (LOS) functionality is integrated for enhanced diagnostic capabilities, enabling precise monitoring of signal quality.
Electrically, the module provides a differential impedance of 100Ω and supports input swing differentials ranging from 180mV to 850mV. Advanced timing features include a Tx Disable Assert Time of 10µs and a Tx Fault Assert Time of 100µs. Internally AC-coupled inputs and outputs ensure seamless integration with host systems. The transceiver also includes EEPROM-based digital diagnostics for real-time monitoring and troubleshooting.
In summary, the 14.025Gbps SFP+ Optical Transceiver is a reliable and efficient solution for high-speed data communication over medium distances. Its robust design, advanced diagnostic capabilities, and adherence to international standards make it a critical component for modern networking and data transmission infrastructures.
This hot-pluggable transceiver supports up to 14.025 Gbps line rate for 16G Fibre Channel and is backward compatible with 8G and 4G Fibre Channel. It complies with SFP+ MSA and SFF-8472 standards and operates over 9/125 µm SMF up to 10 km with a duplex LC connector. Power consumption is <1.2 W on a single 3.3 V supply, with operating case temperature from 0 °C to +70 °C. Integrated DDMI provides real-time monitoring of temperature, voltage, bias, Tx, and Rx power.
Key Parameters
| Specification | Value | Notes |
|---|---|---|
| Form factor / connector | SFP+ (hot-pluggable), LC duplex | SFP+ MSA |
| Data rate | 4.25 / 8.5 / 14.025 Gbps | Fibre Channel 4G/8G/16G |
| Reach | Up to 10 km SMF | — |
| Tx wavelength | 1270 – 1350 nm (1310 nm nominal) | DFB laser |
| Tx optical power | −5 to −0.5 dBm | Average |
| Spectral width | ≤ 1 nm | — |
| Extinction ratio | ≥ 3.5 dB | — |
| Side-mode suppression | ≥ 30 dB | — |
| Receiver wavelength | 1260 – 1600 nm | PIN photodiode |
| Receiver sensitivity | ≤ −12 dBm | BER ≤ 10⁻¹² @ 14.025 Gbps |
| Receiver overload | 0.5 dBm max | — |
| LOS assert/de-assert | −30 dBm / −13 dBm | 0.5 dB hysteresis |
| Supply voltage | 3.135 – 3.465 V | Single 3.3 V supply |
| Power consumption | <1.2 W (Typ. 350 mA) | — |
| Diagnostics | Temp., bias, Tx/Rx power, Vcc | Digital diagnostics (DDMI) |
| Operating case temp. | 0 °C to +70 °C | Commercial range |
| Compliance | SFP+ MSA, SFF-8472, RoHS, EN 60825 Class 1 | Standards compliant |
