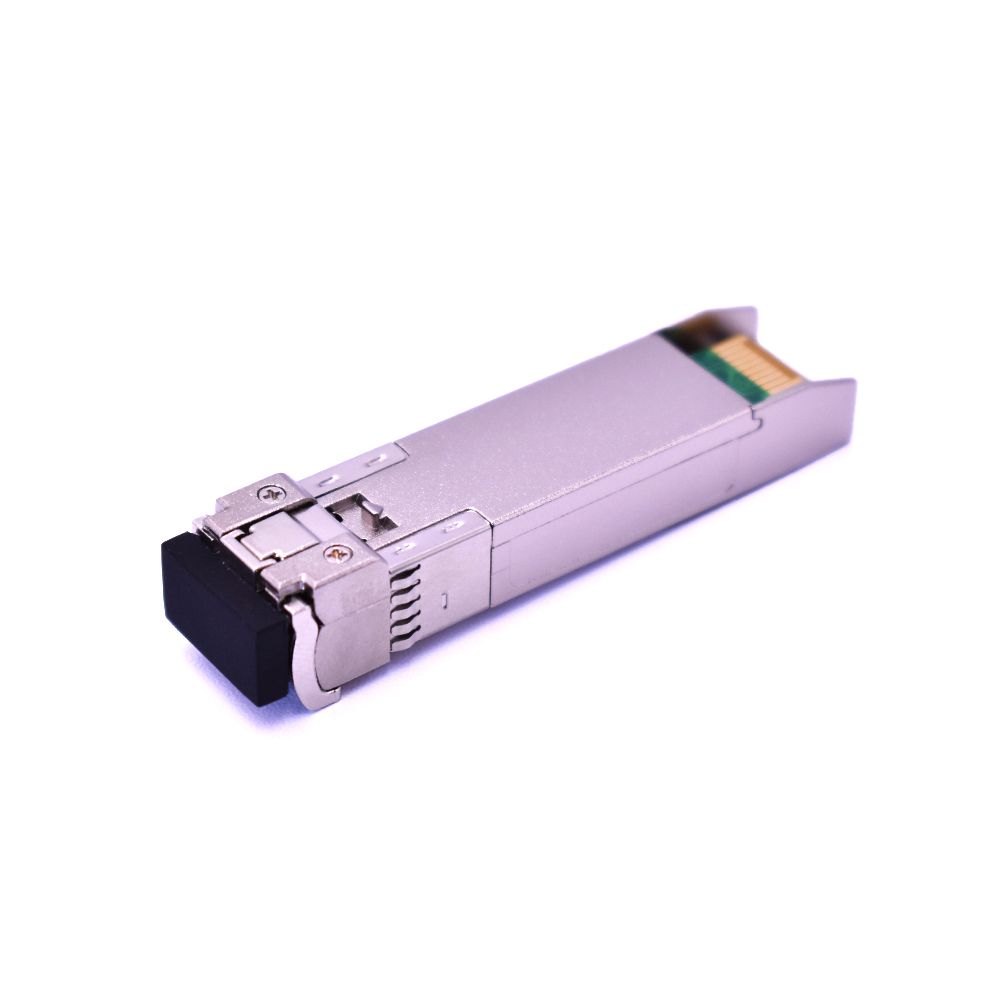

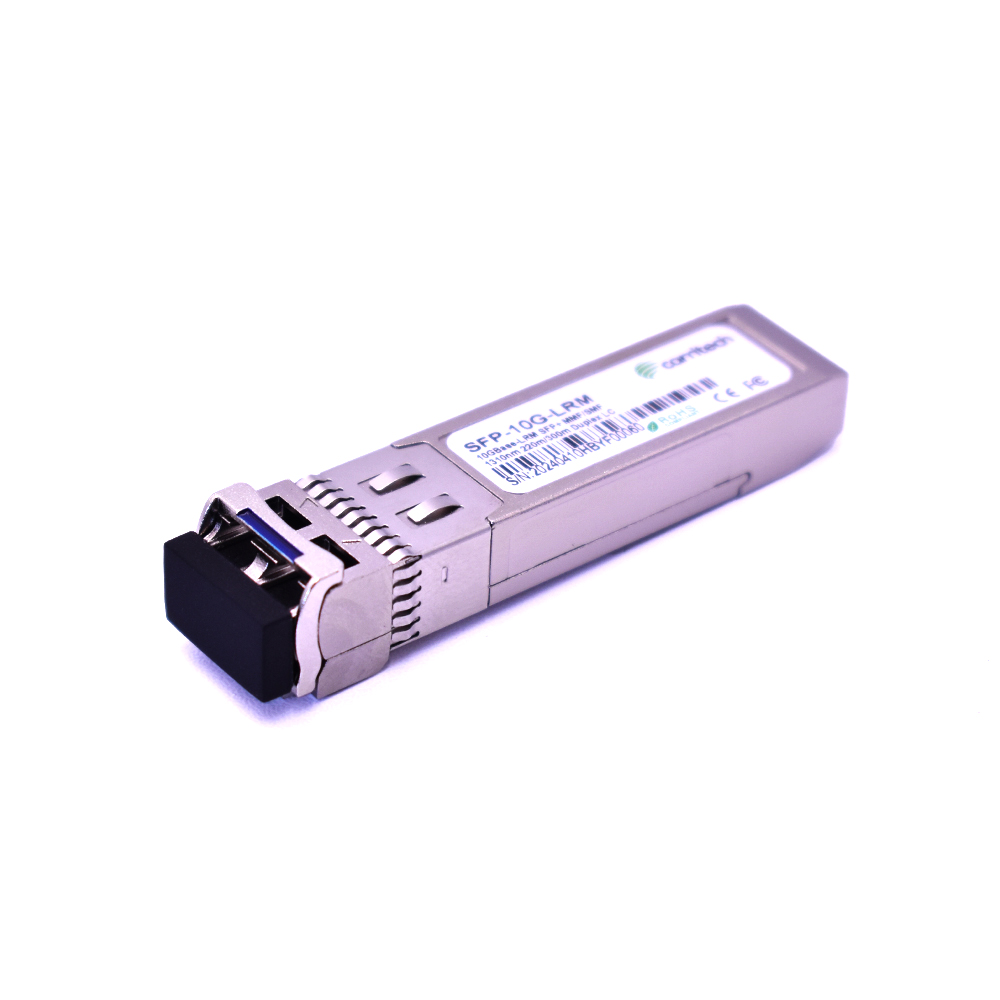

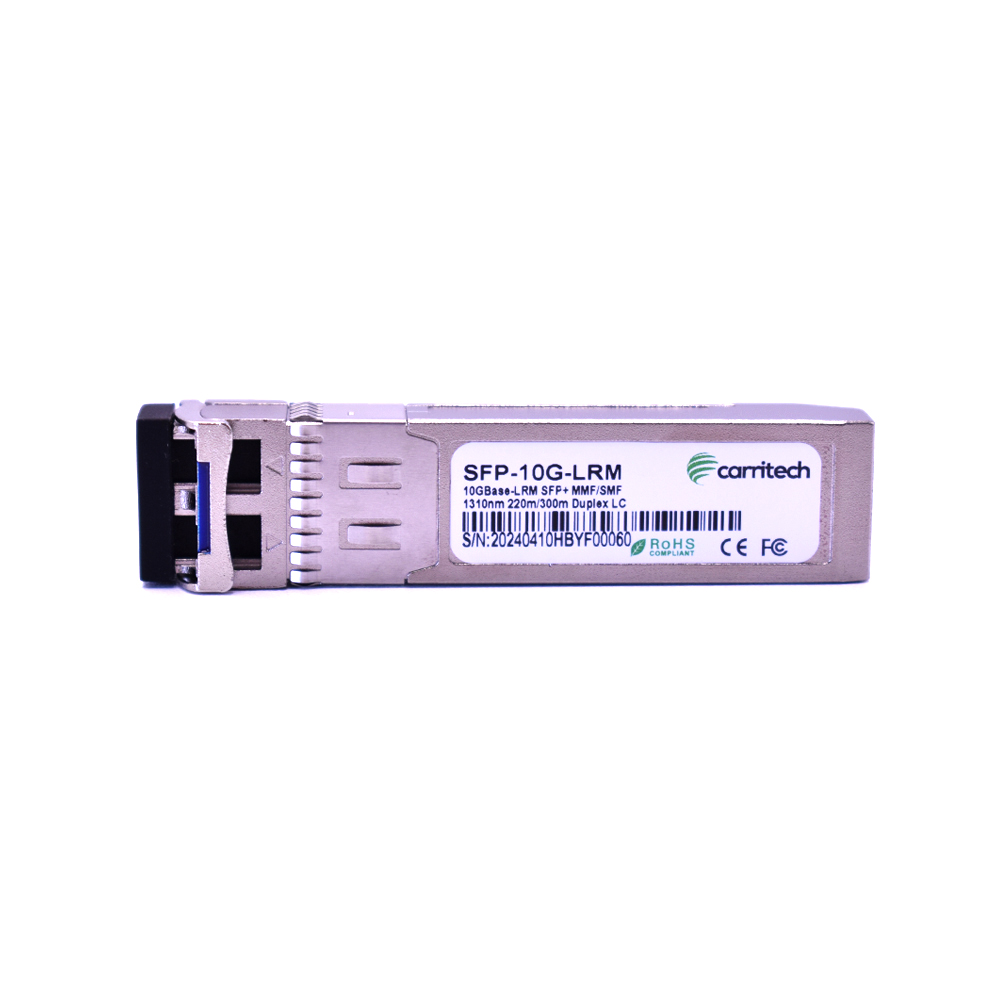

The 14.025Gbps SFP+ Optical Transceiver is a high-performance module optimized for short-range optical communication over multimode fiber (MMF) up to 100 meters. Featuring an 850nm VCSEL laser and a PIN photodiode, this transceiver supports data rates of 4.25Gbps, 8.5Gbps, and 14.025Gbps, making it ideal for applications in Fibre Channel networks. It complies with SFP+ MSA and SFF-8472 standards, ensuring seamless integration with existing networking systems. The module’s hot-pluggable design and duplex LC connector simplify deployment and maintenance.
Operating on a single +3.3V power supply, the transceiver consumes less than 1W of power, making it energy-efficient. It is designed for commercial environments with an operating temperature range of 0°C to +70°C. Additionally, its compatibility with RoHS regulations underscores its environmentally responsible design. Integrated digital diagnostic monitoring provides real-time tracking of critical parameters like temperature, voltage, bias current, and optical power, ensuring reliability and facilitating proactive maintenance.
Optically, the transmitter delivers an average output power ranging from -7.8dBm to -0.5dBm with a center wavelength of 850nm. The extinction ratio is maintained at 3.0dB for clear signal transmission. The receiver offers a sensitivity of -10.5dBm and operates across a wavelength range of 840nm to 860nm. Loss of Signal (LOS) functionality enhances link diagnostics, ensuring consistent performance and fault detection.
Electrically, the transceiver supports a differential impedance of 100Ω, with input swing differentials from 180mV to 950mV. Advanced timing parameters, such as a Tx Disable Assert Time of 10µs and Tx Fault Assert Time of 100µs, ensure quick and reliable transitions in network operations. Internal AC-coupled inputs and outputs enhance integration with host systems.
In summary, the 14.025Gbps SFP+ Optical Transceiver is a reliable and efficient solution for high-speed data communication over short distances. Its robust design, compliance with industry standards, and advanced diagnostic features make it an essential component for modern data transmission infrastructures.
This hot-pluggable module supports data rates up to 14.025 Gbps for 16G Fibre Channel, and is backward compatible with 8.5 Gbps (8G) and 4.25 Gbps (4G). It complies with SFP+ MSA and SFF-8472 standards, operating over OM2 and OM3 multimode fibers: up to 35 m on OM2 at 16G, and up to 100 m on OM3 at 16G. Typical power consumption is <1 W with a single 3.3 V supply. Operating case temperature range is 0 °C to +70 °C. Digital diagnostics monitoring provides real-time status of temperature, supply voltage, bias, Tx, and Rx optical power.
Key Parameters
| Specification | Value | Notes |
|---|---|---|
| Form factor / connector | SFP+ (hot-pluggable), LC duplex | SFP+ MSA |
| Data rate | 4.25 / 8.5 / 14.025 Gbps | Fibre Channel 4G/8G/16G |
| Reach (OM2 fiber) | 4G: 150 m / 8G: 50 m / 16G: 35 m | — |
| Reach (OM3 fiber) | 4G: 380 m / 8G: 150 m / 16G: 100 m | — |
| Tx wavelength | 840 – 860 nm (850 nm nominal) | VCSEL laser |
| Tx optical power | –7.8 to –0.5 dBm | Average |
| Spectral width | 0.59 nm RMS | — |
| Extinction ratio | ≥ 3.0 dB | — |
| Receiver type | PIN photodiode | — |
| Receiver sensitivity | ≤ –10.5 dBm | BER ≤ 10⁻¹² |
| Receiver overload | 0 dBm max | — |
| LOS assert/de-assert | –22 dBm / –12 dBm | 0.5–4 dB hysteresis |
| Supply voltage | 3.135 – 3.465 V | Single 3.3 V supply |
| Power consumption | <1 W (Typ. 300 mA) | — |
| Diagnostics | Temp., bias, Tx/Rx power, Vcc | Digital diagnostics (DDMI) |
| Operating case temp. | 0 °C to +70 °C | Commercial range |
| Compliance | SFP+ MSA, SFF-8472, RoHS, EN 60825 Class 1 | Standards compliant |
