The 1.25Gbps SFP Optical Transceiver is a high-performance module designed for ultra-long-range data communication over single-mode fiber (SMF) up to 160 kilometers. Housed in an SFP package with an LC connector, the transceiver employs a 1550nm DFB laser and APD photodetector for superior optical performance. Supporting a data rate of 1.25Gbps, it is suitable for Ethernet, telecom, and Fiber Channel applications. The transceiver operates on a single +3.3V power supply and features LVPECL-compatible data input/output interfaces, ensuring seamless integration with host systems. Its compliance with IEC-60825 laser safety standards and RoHS regulations underscores its commitment to safety and environmental standards.
This module is engineered to operate reliably under a variety of conditions, with a supply voltage range of 3.15V to 3.45V and operating temperatures spanning 0°C to +70°C for commercial use, and -40°C to +85°C for industrial environments. The device’s maximum power dissipation of 1W makes it an energy-efficient solution for extended-range networking. It is also designed with robust protection against electromagnetic interference (EMI) and electrostatic discharge (ESD), ensuring consistent performance in demanding applications.
Optically, the transceiver excels with a transmitter operating at a center wavelength of 1550nm, delivering an output power between 0dBm and +5dBm. The extinction ratio of 10dB to 15dB ensures effective signal differentiation. The receiver section supports wavelengths from 1260nm to 1620nm, with a sensitivity of -32dBm and an overload threshold of -7dBm. These characteristics align with IEEE 802.3z and ANSI Fiber Channel standards, ensuring high-quality data transmission and compatibility with advanced protocols.
Electrically, the module includes a differential impedance of 100Ω and supports data input swing differentials from 500mV to 2400mV. The receiver delivers an output swing differential between 370mV and 2000mV. Features such as TX Disable, TX Fault, and Loss of Signal (LOS) detection enable precise control and fault monitoring, enhancing its utility in complex network configurations.
Overall, the 1.25Gbps SFP Optical Transceiver is a robust and energy-efficient solution for ultra-long-distance networking needs. Its advanced optical and electrical performance, combined with compliance to industry standards, makes it a reliable choice for modern telecommunications and data center infrastructure.

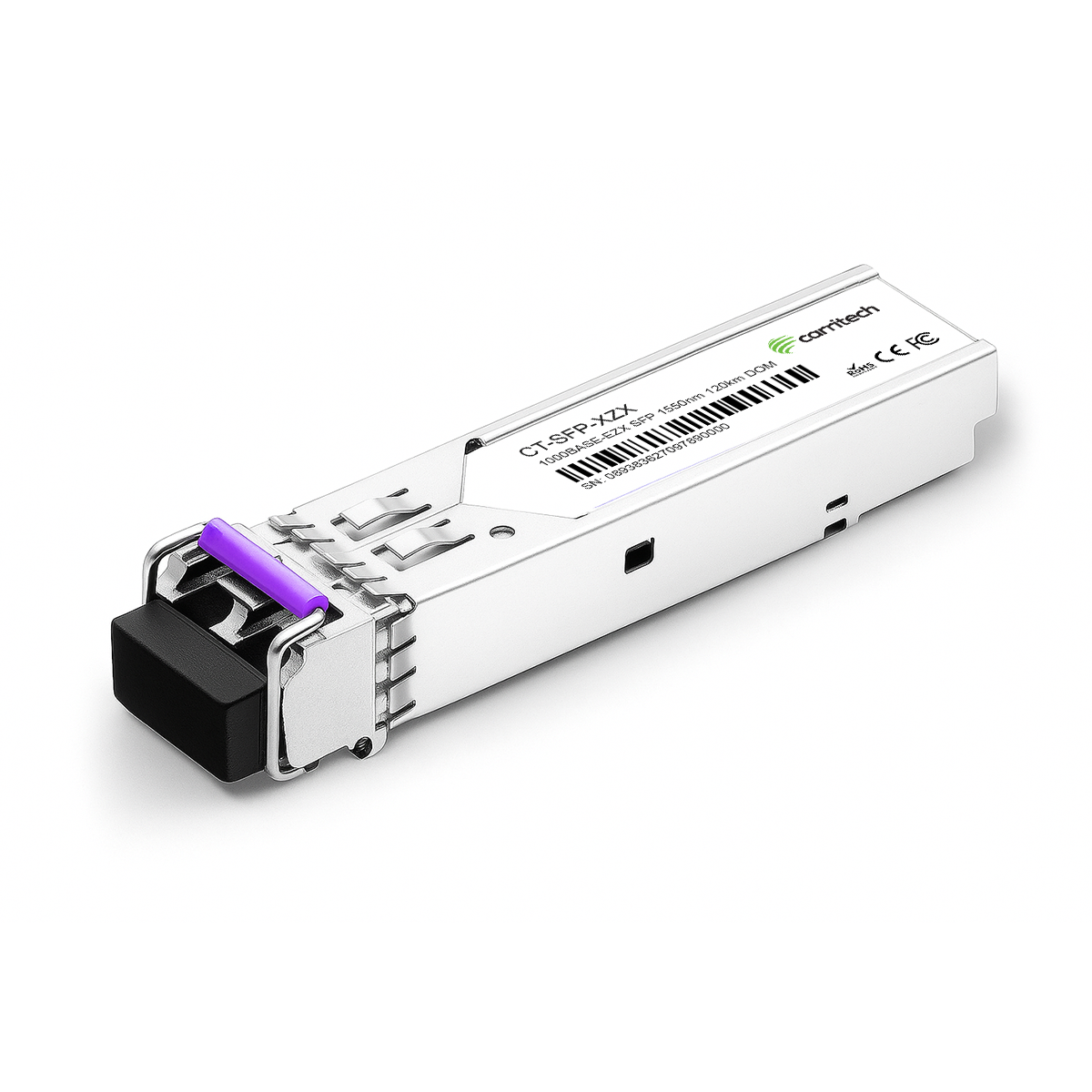

The CT-SFP-XZX is a high-performance SFP module designed for 1.25 Gb/s links up to 160 km on single-mode fiber. It integrates a 1550 nm DFB laser transmitter with an APD photodiode receiver, providing excellent sensitivity (–32 dBm) and optical budget. Operating with a single +3.3 V supply and <1 W power consumption, it supports LVPECL-compatible differential interfaces, EEPROM-based diagnostics, and strong EMI/ESD protection. Compliant with IEEE 802.3z Gigabit Ethernet, ANSI Fibre Channel, IEC-60825 Class 1 laser safety, and RoHS, it is suitable for commercial and industrial use.
| Parameter | Value |
|---|---|
| Form factor / Connector | SFP, LC duplex |
| Data rate | 1.25 Gb/s |
| Tx wavelength | 1550 nm, DFB laser |
| Rx wavelength | 1260–1620 nm |
| Fiber type / Reach | SMF, up to 160 km |
| Tx output power | 0 to +5 dBm |
| Extinction ratio | 10–15 dB |
| Rx sensitivity | ≤ –32 dBm (APD) |
| Rx overload | –7 dBm |
| LOS threshold | Assert –40 dBm, Deassert –32 dBm |
| Power consumption | ≤ 1 W |
| Supply voltage | 3.15–3.45 V (nom. 3.3 V) |
| Electrical interface | LVPECL-compatible differential I/O |
| EEPROM | Serial ID (A0h), diagnostics (SFF-8472) |
| Category | Range |
|---|---|
| Operating case temperature (Commercial) | 0 to +70 °C |
| Operating case temperature (Industrial) | –40 to +85 °C |
| Storage temperature | –40 to +85 °C |
| Relative humidity | 5% – 95% (non-condensing) |
