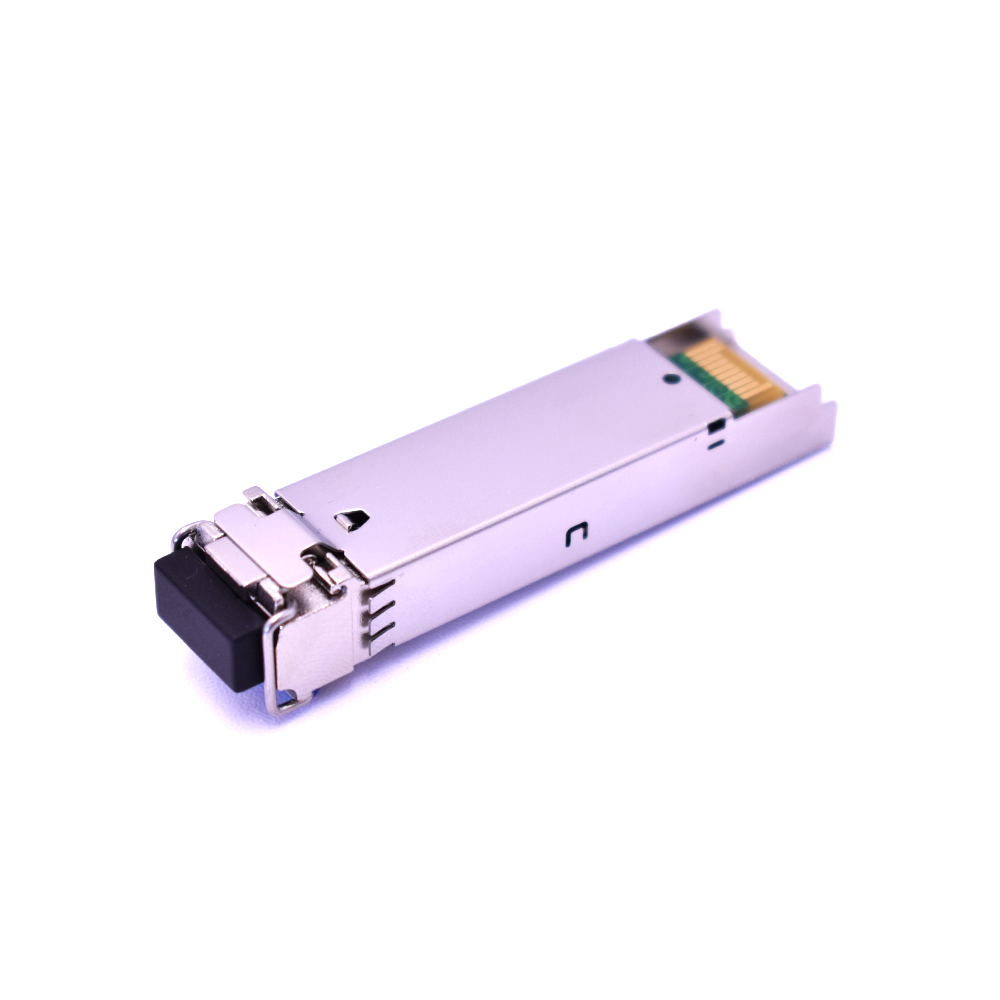

SFP 1000BASE-DWDM Channel 17 to Channel 61 100GHz 120km DOM Duplex LC/UPC SMF Optical Transceiver Module for Transmission

The 1.25Gbps DWDM SFP Transceiver is a high-performance optical module engineered for ultra-long-distance data transmission over single-mode fiber (SMF) up to 120 kilometers. Encased in a hot-pluggable SFP form factor, it features a DWDM DFB laser transmitter and an APD photodiode receiver for superior optical performance. Supporting data rates of up to 1.25Gbps, this transceiver is well-suited for applications in DWDM networks, SONET/SDH systems, Gigabit Ethernet, and Fiber Channel communication. It adheres to DWDM SFP MSA and SFF-8472 standards, ensuring compatibility with modern networking equipment.

Operating on a single +3.3V power supply, the transceiver is designed for efficiency and stability. Its metal enclosure minimizes electromagnetic interference (EMI), making it reliable in demanding networking environments. The module supports a 100GHz ITU Grid in the C Band, with wavelength precision maintained within ±0.1nm over its lifetime and under varying temperature conditions. Digital diagnostic monitoring provides real-time insights into operational parameters such as temperature, optical power, and voltage levels, ensuring optimal performance management.

Optical performance is a standout feature, with the transmitter delivering an average output power range of 0dBm to +5dBm and an extinction ratio of 8.2dB. The receiver is highly sensitive, with a minimum input power of -30dBm and an overload threshold of -10dBm, and it operates across a wavelength range of 1270nm to 1610nm. Advanced features like Loss of Signal (LOS) detection and Transmit Disable functionality enable enhanced monitoring and control, offering robust diagnostics and operational flexibility.

Electrically, the transceiver is equipped with a differential input impedance of 100Ω and complies with IEEE 802.3z standards for transmitter output. The integrated 2-wire serial interface provides access to identification and diagnostic information, supporting precise management of the transceiver’s performance and configuration. Additionally, alarm and warning flags alert users to deviations from factory-set operational parameters, ensuring reliability in critical applications.

In summary, the 1.25Gbps DWDM SFP Transceiver is a cutting-edge solution for ultra-long-distance optical communication. Its advanced features, combined with compliance to industry standards, make it an essential component for modern telecommunications and data networking infrastructures.

This SFP MSA-compliant module supports 1.25 Gbps TX/RX operation up to 120 km on single-mode fiber via duplex LC. It operates on 3.3 V, implements SFF-8472 digital diagnostics, and maintains wavelength stability within ±0.1 nm across life and temperature on the C-band 100 GHz ITU grid. Case operating range is 0 °C to +70 °C. Optical performance includes 0 to +5 dBm average TX power, ≥8.2 dB extinction ratio, ≥30 dB SMSR, ≤0.3 nm spectral width (-20 dB), ≤-30 dBm receiver sensitivity, and -10 dBm overload. LOS, TX Disable, and TX Fault are supported, with eye-mask compliance to IEEE 802.3z.

Optical & Link Performance

Electrical & Environmental

Compliance

• SFP MSA, SFF-8472 digital diagnostics.

• Class 1 laser (FDA 21 CFR 1040.10/1040.11; IEC/EN 60825-1/-2).

• EMI/ESD: FCC Part 15 Class B, EN 55022 Class B, IEC/EN 61000-4-2.

• Safety/EMC/RoHS: IEC/EN 60950 (UL), EN 61000-3, 2002/95/EC.

• DWDM C-band transport over long-haul point-to-point links up to 120 km.
• SONET/SDH, Gigabit Ethernet, and Fibre Channel backbones requiring dense wavelength multiplexing and long reach.

• DWDM DFB transmitter + APD receiver for high sensitivity and long-reach performance.
• 100 GHz ITU-grid, C-band operation with ±0.1 nm wavelength control for reliable multiplexing.
• SFP MSA hot-pluggable design with duplex LC interface and metal enclosure for reduced EMI.
• SFF-8472 Digital Diagnostic Monitoring (DDM) with I²C access (A0h/A2h).
• 3.3 V single supply, 0–70 °C operating case temperature.
