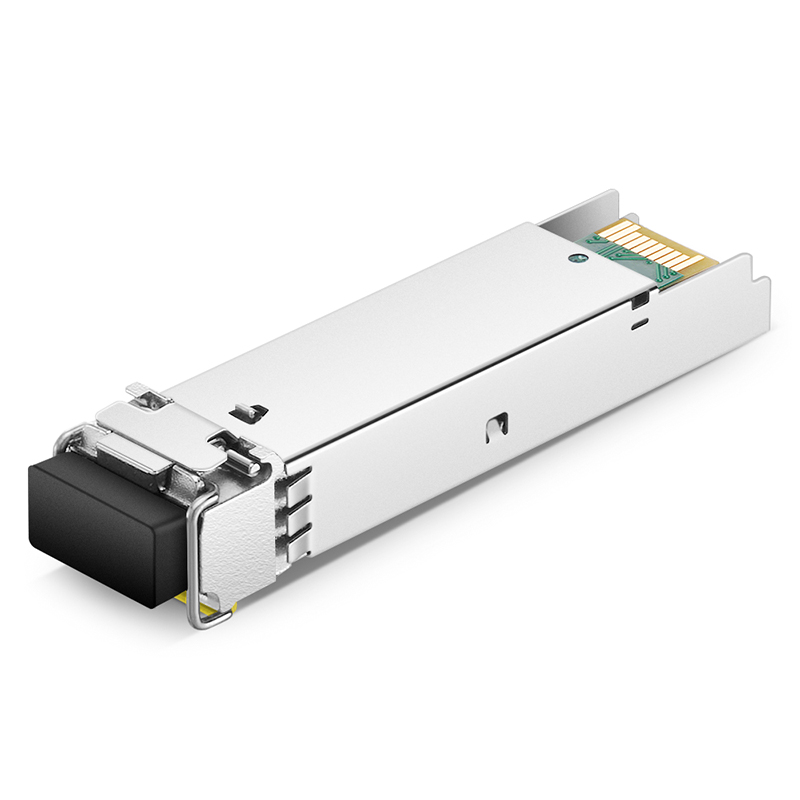

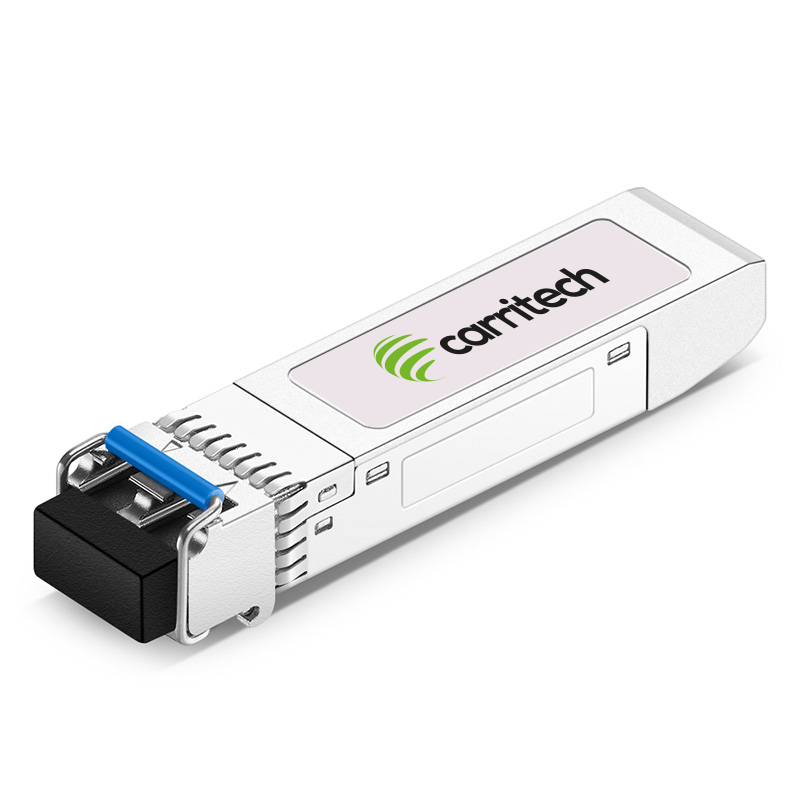

The 1000BASE-EX SFP transceiver module is designed for long-range data transmission, supporting distances of up to 40km over single-mode fiber (SMF) at a wavelength of 1310nm via an LC duplex connector.
With high-performance and reliable connectivity, this SFP module is ideal for extending network reach in Enterprise LAN & SAN environments, Internet Service Provider (ISP) networks, and telecommunications applications. Its hot-swappable design ensures easy installation and seamless integration into compatible networking equipment.
The 1000BASE EX 155Mbps SFP Optical Transceiver is designed for high-performance optical communication over single-mode fiber (SMF) with a transmission distance of up to 40 kilometers. It features a compact SFP package with an LC connector and is equipped with a 1310nm FP laser and PIN photodetector, making it ideal for applications in Ethernet, telecommunications, and Fiber Channel networks. Its robust design includes a +3.3V single power supply and an LVPECL-compatible data input/output interface, ensuring reliable integration into various network setups. With compliance to IEC-60825 laser safety standards and RoHS regulations, this transceiver meets critical industry requirements for safety and environmental standards.
The transceiver operates efficiently in a wide range of environments, supporting supply voltages between 3.15V and 3.45V and tolerating commercial operating temperatures from 0°C to +70°C. For industrial use, it can function in extreme conditions, with operating case temperatures ranging from -40°C to +85°C. Its low electromagnetic interference (EMI) and excellent electrostatic discharge (ESD) protection make it suitable for sensitive and high-demand network environments. The power dissipation is capped at 1W, ensuring energy efficiency while maintaining a data rate of 155Mbps.
The optical characteristics of the device highlight its precision and performance. The transmitter section offers a center wavelength of 1310nm, ensuring stable signal transmission, with an output power range from -8dBm to -3dBm and an extinction ratio between 12dB and 18dB. The receiver section is equally robust, capable of detecting signals over a wide wavelength range of 1260nm to 1620nm with a sensitivity of -34dBm and an overload threshold of -3dBm. Additional features like the Loss of Signal (LOS) functionality provide real-time feedback on signal integrity, further enhancing reliability.
In terms of electrical performance, the transceiver includes differential impedance adjustments and a wide range of input/output swing voltages for seamless integration with host systems. The transmitter and receiver sections are engineered for optimal signal integrity, with clear voltage thresholds for functions such as TX Disable and Rx_LOS. The integration of these electrical characteristics ensures the device is versatile and compatible with various host board configurations.
Overall, the 155Mbps SFP Optical Transceiver delivers a reliable and efficient solution for high-speed optical communication, with features and specifications that cater to both commercial and industrial applications. Its adherence to strict safety standards, coupled with its robust optical and electrical performance, makes it a trusted choice for modern networking needs.
EX SFP transceiver module is designed for long-range data transmission, supporting distances of up to 40km over single-mode fiber (SMF) at a wavelength of 1310nm via an LC duplex connector.
With high-performance and reliable connectivity, this SFP module is ideal for extending network reach in Enterprise LAN & SAN environments, Internet Service Provider (ISP) networks, and telecommunications applications. Its hot-swappable design ensures easy installation and seamless integration into compatible networking equipment.
