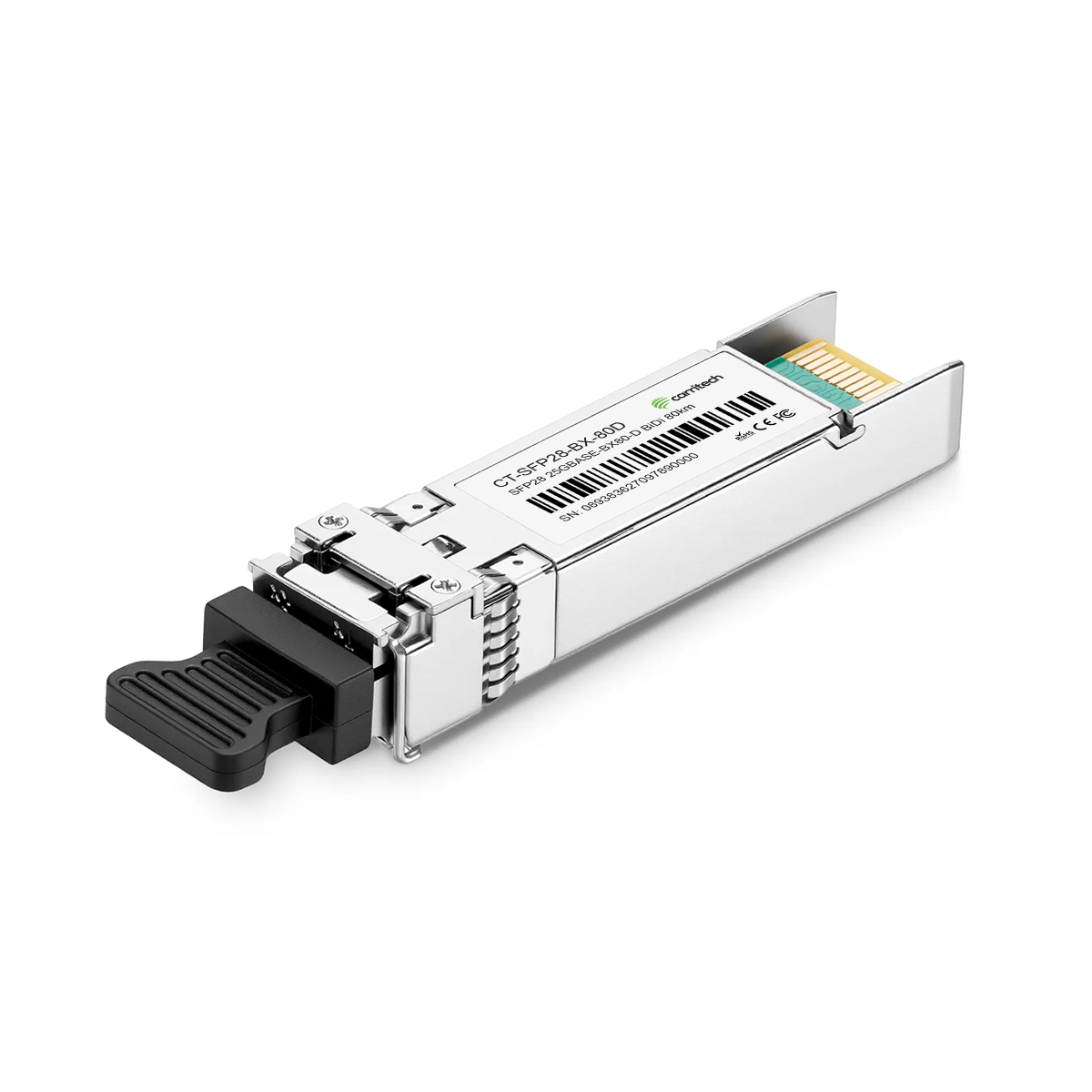

SFP28 25GBASE-BX80-D BiDi 1310nm-TX/1270nm-RX 80km DOM Simplex LC/UPC SMF Optical Transceiver Module For 5G Wireless

The 25Gbps Bi-Directional SFP28 Transceiver is designed for high-speed data transmission over single-mode fiber (SMF) for distances up to 80 kilometers. This module supports data rates from 24.33Gbps to 25.78Gbps and features two configurations: CT-SFP28-BX-80U, which uses a 1270nm DML laser for transmission and a 1310nm APD receiver, and CT-SFP28-BX-80D, which transmits at 1310nm and receives at 1270nm. Compliant with SFP28 MSA, SFF-8431, and SFF-8472 standards, it is suitable for applications such as 25GE BASE-LR Ethernet and CPRI Option 10/eCPRI.

Operating on a single +3.3V power supply with power consumption below 1.5W, the transceiver is energy-efficient and available in both commercial (0°C to 70°C) and industrial (-40°C to 85°C) temperature ranges. It features a compact, hot-pluggable design with an LC single connector for seamless integration. The transmitter delivers an average output power of 0dBm to +6dBm with an extinction ratio of 3.5dB, while the receiver provides sensitivity down to -19dBm. Advanced features such as Loss of Signal (LOS) detection and digital diagnostic monitoring enable real-time tracking of key parameters like temperature, voltage, bias current, and optical power, ensuring reliable performance and ease of maintenance.

• 25GE BASE-LR Ethernet
• CPRI Option 10/eCPRI

• Operating data rate up to 25.78Gbps
• Up to 80km transmission distance
• High sensitivity APD photodiode and TIA
• Rate Adaptation
• LC single connector
• Hot pluggable 20pin connector
• Low power consumption <1.5 W
• Single +3.3V±5% power supply
• Compliant with SFF-8472
• Fully RoHS Compliant
• Operating temperature range:
  • Commercial: 0°C to +70°C
  • Industrial: -40°C to +85°C

At Carritech, we pride ourselves on our exceptional service and commitment to meeting our customers’ needs. Our extensive range of SFP transceivers, including the CT-SFP28-BX-80D, is designed to cater to various requirements, ensuring that you receive the best solutions for your projects. We understand the importance of timely delivery, and our efficient processes are geared towards providing you with the products you need as quickly as possible. Our dedicated team works tirelessly to ensure that your orders are processed and dispatched promptly, so you can rely on us for swift and reliable service.

We recognise that every project is unique, and our flexible approach allows us to adapt to your specific needs. Whether you require immediate delivery or have more complex requirements, we are here to support you every step of the way. Our commitment to customer satisfaction means that we go above and beyond to ensure that you receive your SFP transceivers in a timely manner, without compromising on quality. Trust Carritech to deliver the solutions you need, when you need them.

At Carritech Optics, we stand by the quality and reliability of our optical transceivers. That’s why we proudly offer a lifetime warranty on all products as a testament to our commitment to excellence and customer satisfaction.

What Does Our Lifetime Warranty Cover?

Our lifetime warranty provides comprehensive coverage for the entire lifecycle of your optical transceivers, ensuring you experience complete peace of mind when choosing Carritech Optics. The warranty covers:

• Defects in Materials and Workmanship: If your product experiences any issues related to manufacturing or materials, we’ll repair or replace it free of charge.
• Performance Assurance: Our optical transceivers are rigorously tested to meet industry standards, and we guarantee they’ll perform as expected in your network environment.

Easy Claims Process

Should you ever need to make a warranty claim, our team is here to assist you. Simply contact our support team with your product details, and we’ll guide you through a quick and hassle-free process to resolve the issue.

Your Network’s Performance, Guaranteed

Carritech Optics is dedicated to providing high-quality optical solutions that you can trust for the long haul. With our lifetime warranty, you can confidently invest in our products, knowing that we’re with you every step of the way.
