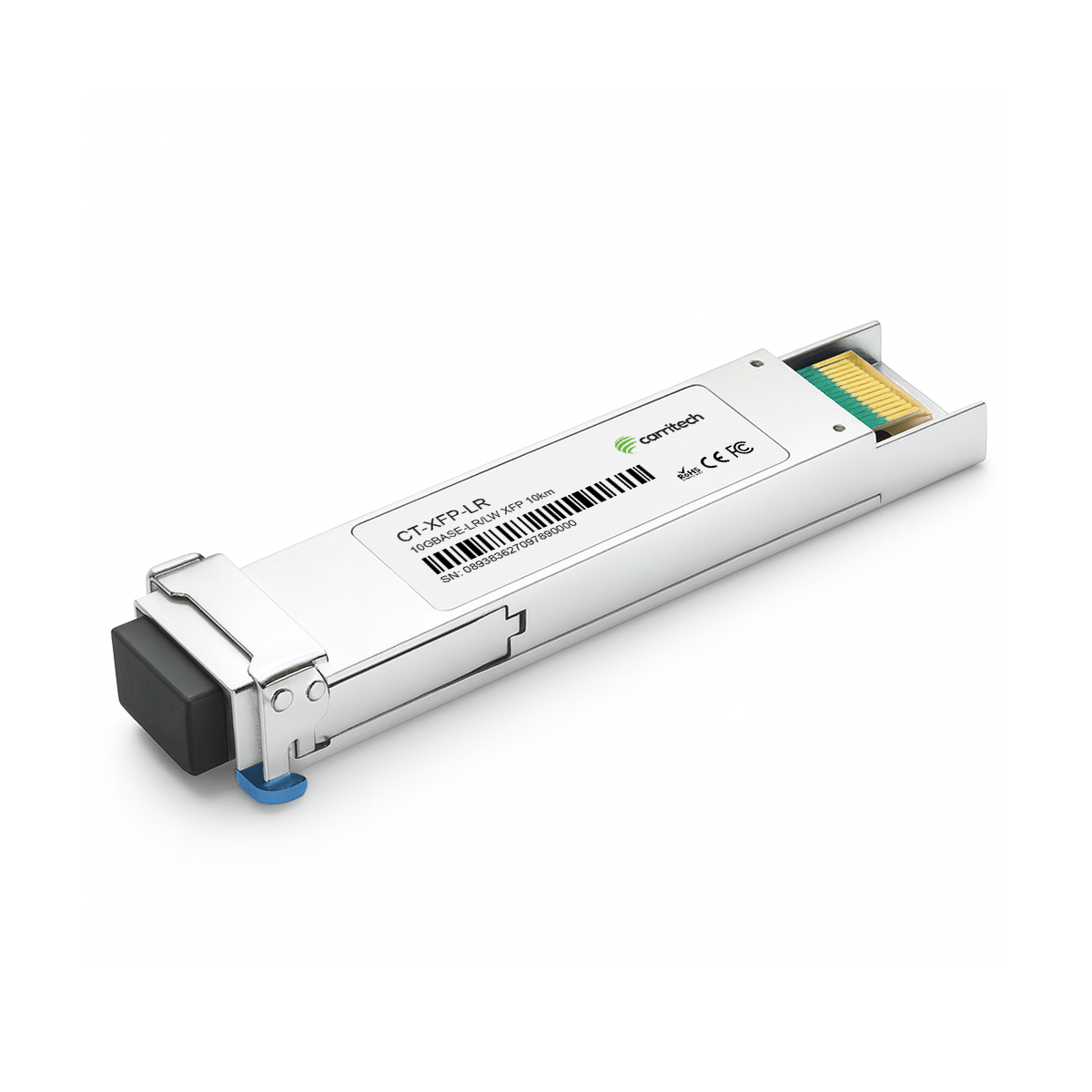

The 10Gbps 1310nm XFP Optical Transceiver is a high-performance module designed for medium-distance optical communication over single-mode fiber (SMF) up to 10 kilometers. This transceiver supports data rates from 9.95Gbps to 11.1Gbps and is compliant with the XFP Multi-Source Agreement (MSA). Equipped with a 1310nm uncooled EML laser and a PIN photodiode receiver, it provides efficient optical performance. Its compatibility with IEEE 802.3ae for 10GBASE-LR/LW and Fiber Channel applications makes it a versatile choice for modern networking infrastructures.
Operating on +5V and +3.3V power supplies, the transceiver consumes less than 2.5W, offering energy efficiency. It is built for commercial use with an operating temperature range of 0°C to 70°C, ensuring reliable performance in diverse environments. The module’s hot-pluggable design and duplex LC connector facilitate easy installation and integration, while its compliance with RoHS underscores its environmentally friendly design.
Optical performance includes a transmitter output power range of -6.5dBm to +0.5dBm, with a wavelength range of 1260nm to 1355nm. The side-mode suppression ratio (SMSR) of 30dB ensures clean signal transmission. The receiver offers a sensitivity of -14.5dBm and a maximum input power of +0.5dBm, with support for wavelengths between 1260nm and 1600nm. Loss of Signal (LOS) functionality provides enhanced diagnostic capabilities, indicating signal stability and link integrity.
Electrically, the transceiver supports differential input impedance of 100Ω and input swing differentials from 120mV to 820mV. Advanced features include Transmitter Disable (TX_DISABLE), Fault Indicators, and a two-wire serial interface for real-time monitoring of operating parameters like temperature, voltage, bias current, and optical power. Diagnostic capabilities adhere to SFF-8472 standards, enabling proactive network maintenance.
In summary, the 10Gbps 1310nm XFP Optical Transceiver is an efficient and reliable solution for high-speed data communication over medium distances. Its advanced optical and electrical performance, combined with compliance to industry standards, makes it a valuable asset for modern telecommunications and data networking applications.
This hot-pluggable XFP module supports data rates from 9.95 to 11.1 Gbps and complies with IEEE 802.3ae 10GBASE-LR/LW, SONET OC-192, and Fibre Channel 1200-SM-LL-L standards. It operates up to 10 km over SMF with a duplex LC connector. The design integrates a 1310 nm uncooled EML transmitter, PIN receiver, and DDMI monitoring. It supports dual supply voltages (+5 V and +3.3 V), with total power dissipation <2.5 W. The commercial operating case temperature range is 0 °C to +70 °C.
Key Parameters
| Specification | Value | Notes |
|---|---|---|
| Form factor / connector | XFP (hot-pluggable), LC duplex | XFP MSA |
| Data rate | 9.95 – 11.1 Gbps | 10.3125 Gbps nominal |
| Reach | Up to 10 km SMF | — |
| Tx wavelength | 1260 – 1355 nm (1310 nm nominal) | Uncooled EML laser |
| Tx optical power | −6.5 to +0.5 dBm | Average |
| Laser off power | ≤ –30 dBm | — |
| Side-mode suppression | ≥ 30 dB | — |
| Extinction ratio | ≥ 6 dB | — |
| Receiver type | PIN photodiode | — |
| Receiver sensitivity | ≤ –14.5 dBm (OMA: –12.5 dBm) | BER ≤ 10⁻¹² |
| Receiver overload | +0.5 dBm max | — |
| LOS assert/de-assert | –25 dBm / –15 dBm | 1–4 dB hysteresis |
| Supply voltage | +5 V (4.75–5.25 V), +3.3 V (3.13–3.47 V) | Dual supply |
| Power consumption | <2.5 W | — |
| Diagnostics | Temperature, bias, Tx/Rx power, Vcc | Digital diagnostics (DDMI) |
| Operating case temp. | 0 °C to +70 °C | Commercial range |
| Compliance | IEEE 802.3ae 10GBASE-LR/LW, SONET OC-192, Fibre Channel 1200-SM-LL-L, RoHS, EN 60825 Class 1 | Standards compliant |
