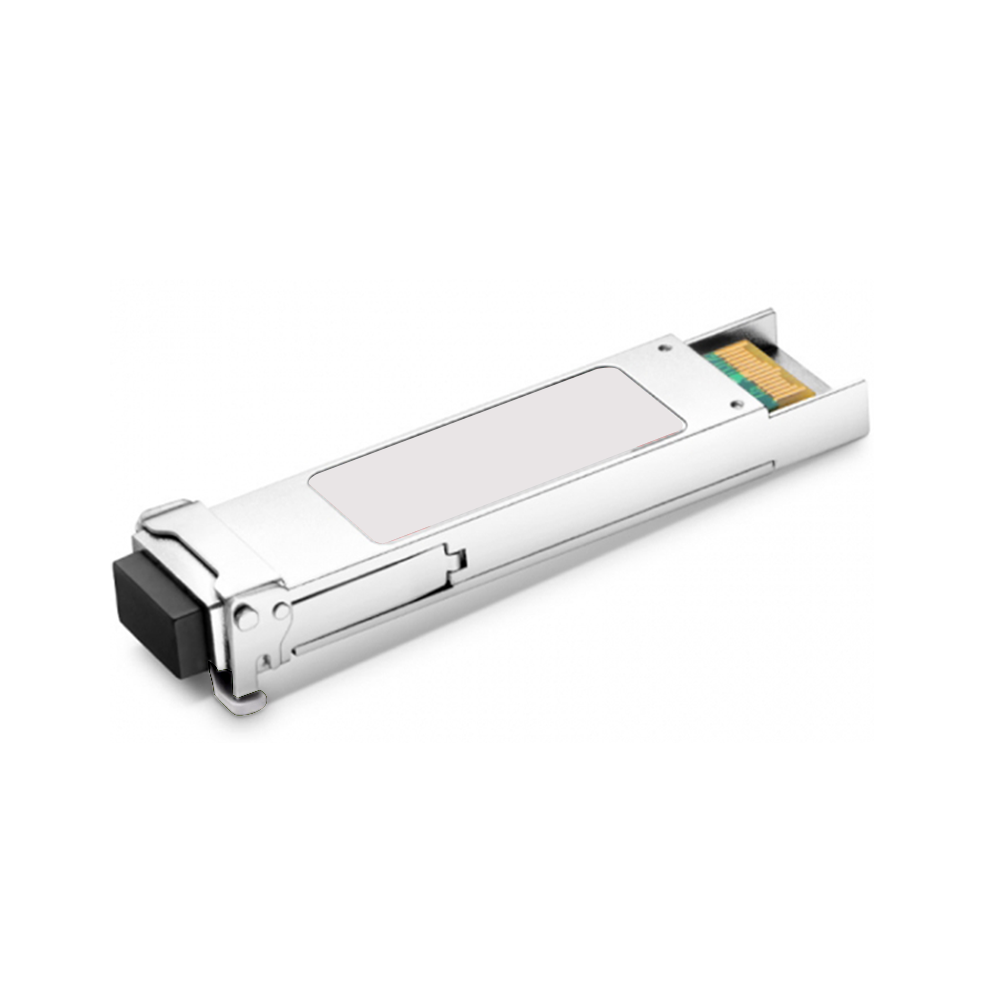

The 10Gbps 1550nm XFP Optical Transceiver is a robust and efficient solution designed for long-range data communication over single-mode fiber (SMF) up to 80 kilometers. This transceiver supports data rates ranging from 9.95Gbps to 11.1Gbps, making it suitable for applications such as 10GBASE-LR/LW Ethernet, SONET/SDH, and 10G Fiber Channel. Housed in a hot-pluggable XFP form factor with a duplex LC connector, it integrates an uncooled 1550nm EML laser and a PIN photodiode for high-performance optical communication. It complies with the XFP Multi-Source Agreement (MSA) and incorporates built-in digital diagnostic functions for enhanced monitoring.
Operating on +3.3V and +5V power supplies, the transceiver consumes less than 2.5W, making it energy efficient. It is designed for commercial environments with an operating temperature range of 0°C to 70°C, ensuring reliable performance across varied conditions. Its compact and hot-pluggable design enables high port density and ease of deployment in modern network systems.
Optically, the transmitter provides an average output power range of 0dBm to +5dBm and operates at a wavelength range of 1530nm to 1565nm. The extinction ratio is 6dB, ensuring clear signal differentiation. The receiver offers a sensitivity of -24dBm and a maximum input power of +0.5dBm, supporting reliable reception over extended distances. Diagnostic features such as Loss of Signal (LOS) detection provide real-time feedback on link integrity, enhancing operational reliability.
Electrically, the transceiver features a differential impedance of 100Ω, with input swing differentials ranging from 120mV to 820mV. The module integrates advanced diagnostic capabilities, accessible via a two-wire serial interface, enabling real-time monitoring of temperature, voltage, bias current, and optical power. Alarm thresholds are implemented for proactive maintenance and network optimization.
In summary, the 10Gbps 1550nm XFP Optical Transceiver is a reliable and efficient solution for high-speed, long-distance optical communication. Its advanced optical and electrical specifications, combined with compliance to industry standards, make it a valuable component for modern telecommunications and data networking infrastructures.
This hot-pluggable XFP module supports data rates from 9.95 to 11.1 Gbps and complies with IEEE 802.3ae 10GBASE-LR/LW, SONET OC-192, and Fibre Channel 1200-SM-LL-L standards. It operates up to 80 km over SMF using a duplex LC connector. The design includes a 1550 nm uncooled EML laser, PIN photodiode receiver, and digital diagnostics monitoring. It supports both +5 V and +3.3 V power supplies, with <2.5 W power dissipation. Operating case temperature is 0 °C to +70 °C.
Key Parameters
| Specification | Value | Notes |
|---|---|---|
| Form factor / connector | XFP (hot-pluggable), LC duplex | XFP MSA |
| Data rate | 9.95 – 11.1 Gbps | 10.3125 Gbps nominal |
| Reach | Up to 80 km SMF | — |
| Tx wavelength | 1530 – 1565 nm (1550 nm nominal) | EML laser |
| Tx optical power | 0 to +5 dBm | Average |
| Laser off power | ≤ –30 dBm | — |
| Side-mode suppression | ≥ 30 dB | — |
| Extinction ratio | ≥ 6 dB | — |
| Receiver type | PIN photodiode | — |
| Receiver sensitivity | ≤ –24 dBm (OMA: –23 dBm) | Tested at BER ≤ 10⁻¹² |
| Receiver overload | +0.5 dBm max | — |
| LOS assert/de-assert | –25 dBm / –15 dBm | 1–4 dB hysteresis |
| Supply voltage | +5 V (4.75–5.25 V), +3.3 V (3.13–3.47 V) | Supports dual supply |
| Power consumption | <2.5 W | — |
| Diagnostics | Temperature, bias, Tx/Rx power, Vcc | Digital diagnostics (DDMI) |
| Operating case temp. | 0 °C to +70 °C | Commercial range |
| Compliance | IEEE 802.3ae 10GBASE-LR/LW, SONET OC-192, Fibre Channel 1200-SM-LL-L, SFF-8472, RoHS, EN 60825 Class 1 | Standards compliant |
