The 155Mbps Bi-Directional SFP Optical Transceiver is designed for medium-range communication over single-mode fiber (SMF) up to 40 kilometers. It features two configurations: one with a 1310nm FP laser transmitter and a 1550nm PIN receiver, and the other with a 1550nm FP laser transmitter and a 1310nm PIN receiver. This module operates on a single +3.3V power supply, offering a power dissipation of 1W for energy efficiency. With an LC connector, the transceiver ensures compatibility with a variety of networking systems and is compliant with RoHS and IEC-60825 laser safety standards, making it environmentally friendly and secure for use in Ethernet, telecom, and Fiber Channel applications.
The transmitter provides an optical output power of -8dBm to -3dBm and maintains an extinction ratio between 12dB and 18dB for reliable signal clarity. The receiver operates at wavelengths of 1310nm or 1550nm and has a sensitivity of -34dBm, with overload handling up to -3dBm. Additional features include Loss of Signal (LOS) detection for enhanced diagnostics and operational monitoring. Designed to operate within commercial (0°C to +70°C) or industrial (-40°C to +85°C) temperature ranges, this transceiver is a dependable solution for high-speed optical communication in diverse environments.

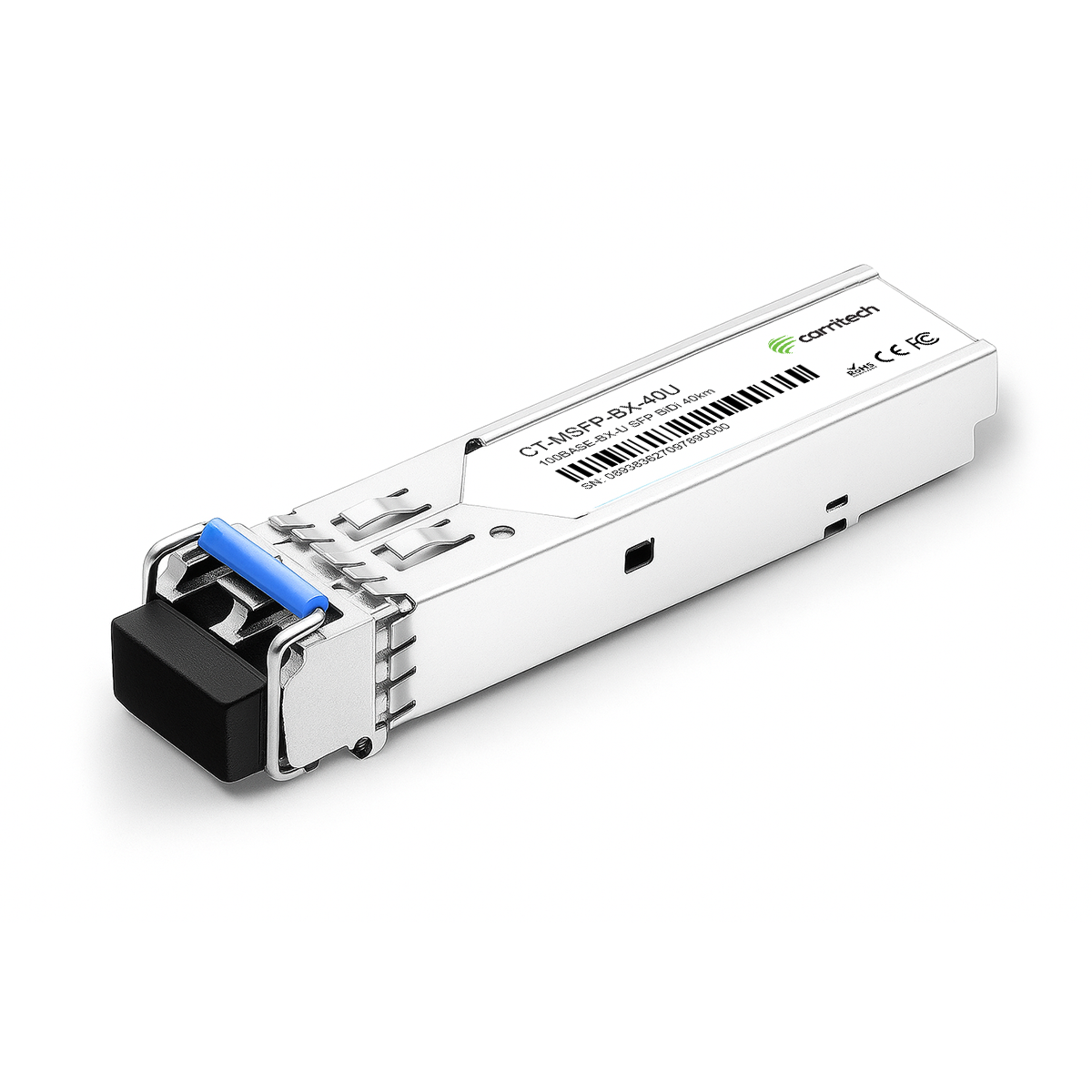

The CT-MSFP-BX-40U and CT-MSFP-BX-40D are hot-pluggable SFP modules designed for bidirectional 155 Mb/s links up to 40 km on 9/125 μm SMF. They integrate 1310 nm (U) or 1550 nm (D) FP transmitters with complementary PIN photodiode receivers, making them a cost-effective solution for medium-reach optical networks. Operating on a single +3.3 V supply with <1 W power dissipation, these modules provide LVPECL-compatible electrical interfaces, excellent EMI/ESD resistance, and digital diagnostics via EEPROM. Fully compliant with IEC-60825 Class 1 laser safety and RoHS, they are available in commercial and industrial temperature versions.
| Parameter | Value |
|---|---|
| Form factor / Connector | SFP, LC duplex |
| Data rate | 155 Mb/s |
| Tx wavelength | 1310 nm (U) / 1550 nm (D), FP laser |
| Rx wavelength | 1260–1360 nm (for 1310 nm Tx) / 1500–1600 nm (for 1550 nm Tx) |
| Fiber type / Reach | SMF, up to 40 km |
| Tx output power | –8 to –3 dBm |
| Extinction ratio | 12–18 dB |
| Rx sensitivity | ≤ –34 dBm |
| Rx overload | –3 dBm |
| LOS threshold | Assert –45 dBm, Deassert –34 dBm |
| Power consumption | ≤ 1 W |
| Supply voltage | 3.15–3.45 V (nom. 3.3 V) |
| Electrical interface | LVPECL-compatible differential I/O |
| EEPROM | Serial ID (A0h), SFF-8472 fields |
| Category | Range |
|---|---|
| Operating case temperature (Commercial) | 0 to +70 °C |
| Operating case temperature (Industrial) | –40 to +85 °C |
| Storage temperature | –40 to +85 °C |
| Relative humidity | 5% – 95% (non-condensing) |
